Trigger Systems Sapphire Sump 39" x 16" x 15"

Experience Superior Filtration with Trigger Systems Sapphire Sump

SAPPHIRE39

Dimensions: 39″ long x 16″ wide x 15″ high
Skimmer Section: 14″ x 15.5″
Center/Refugium Section: 10.5″ x 15.5″
Return Pump Section: 6″ x 15.5″
Total Water Volume: 40 gallons
Skimmer Water Level: 7″ to 9.5″ adjustable
Drain Input Fittings: 1″ (both x2 and x3)
Filter Socks: 4″ (x3)

The Sapphire series is identical to the Emerald series except that it comes in a limited edition Sapphire blue color. Several features of this series are not found anywhere else. Some of the features of the SAPPHIRE39 are:

• Interchangeable plates (Patent Pending)

• Configurable input fitting plate (Patent Pending)

• Laser etched lid to prevent splashing and reduce noise

• Adjustable water level

• Self adjusting foam block platform (Patent Pending)

• Dual platforms

• Laser engraved water level indicator

• Three position probe holder

• 0.25″ hose holder for dosing and ATO inputs

• Protein skimmer section

• Refugium section

• Sapphire blue coloring to block light and prevent unwanted algae growth in other sections

SAPPHIRE39 SECTION DETAILS|

The SAPPHIRE39 has 4 main sections. Water enters the sump into a dedicated section where the water will then flow over into Section 1. Section 1 is the configurable interchangeable plate area allowing for filter sock and/or foam block mechanical filtration. This area is covered with a lid to prevent water splashing and reduce noise. Water then flows out the bottom of Section 1 into Section 2.

Section 2 is typically where the protein skimmer is located. Water then flows through the ‘Trigger Symbol’ cutout into Section 3.

Section 3 is the refugium section. The water then flows over the adjustable water level baffle through 2 perforated platforms and under the last baffle into Section 3. The top perforated platform comes with a foam block filter and the bottom one is open to use for several different filtration methods (bag of carbon, bio balls, bio media, rubble rock, etc.).

Section 4 is the return section where the return pump will sit, pumping water back to the display tank.

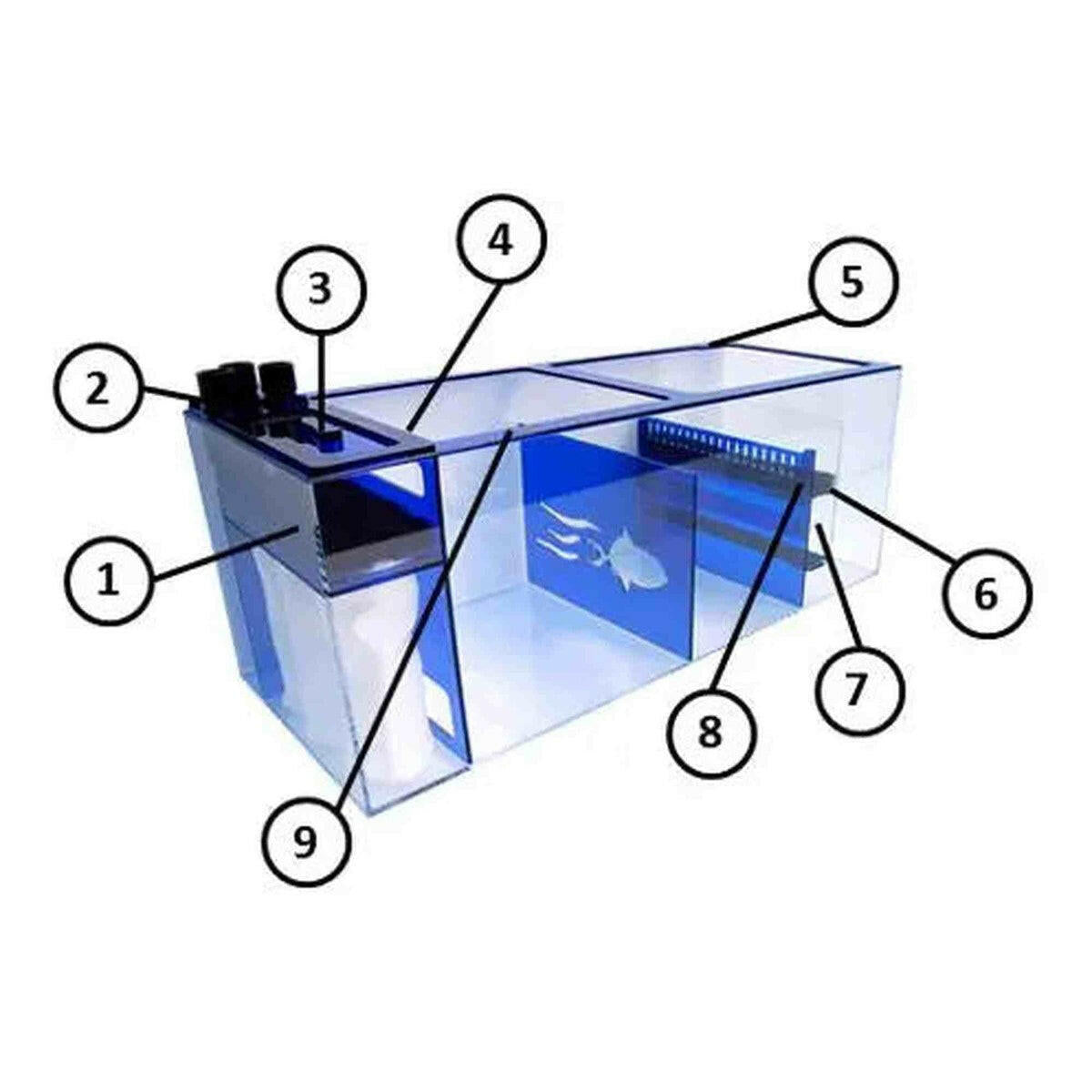

Key Features

1. Interchangeable plates

2. Configurable drain input plate

3. Lid to prevent splashing and reduce noise

4. Three position probe holder

5. 0.25″ hose inputs for dosing and ATO

6. Adjustable water level with self adjusting top platform

7. Dual platforms

8. Laser engraved water level indicator

9. Full top support brace to prevent bowing

Interchangeable Plates

The SAPPHIRE39 comes with the following accessories for Section 1:

• Filter Sock Plate

• 4″ Filter Socks (100 micron rating)

• Foam Block Distribution Plate

• Filter Foam Block

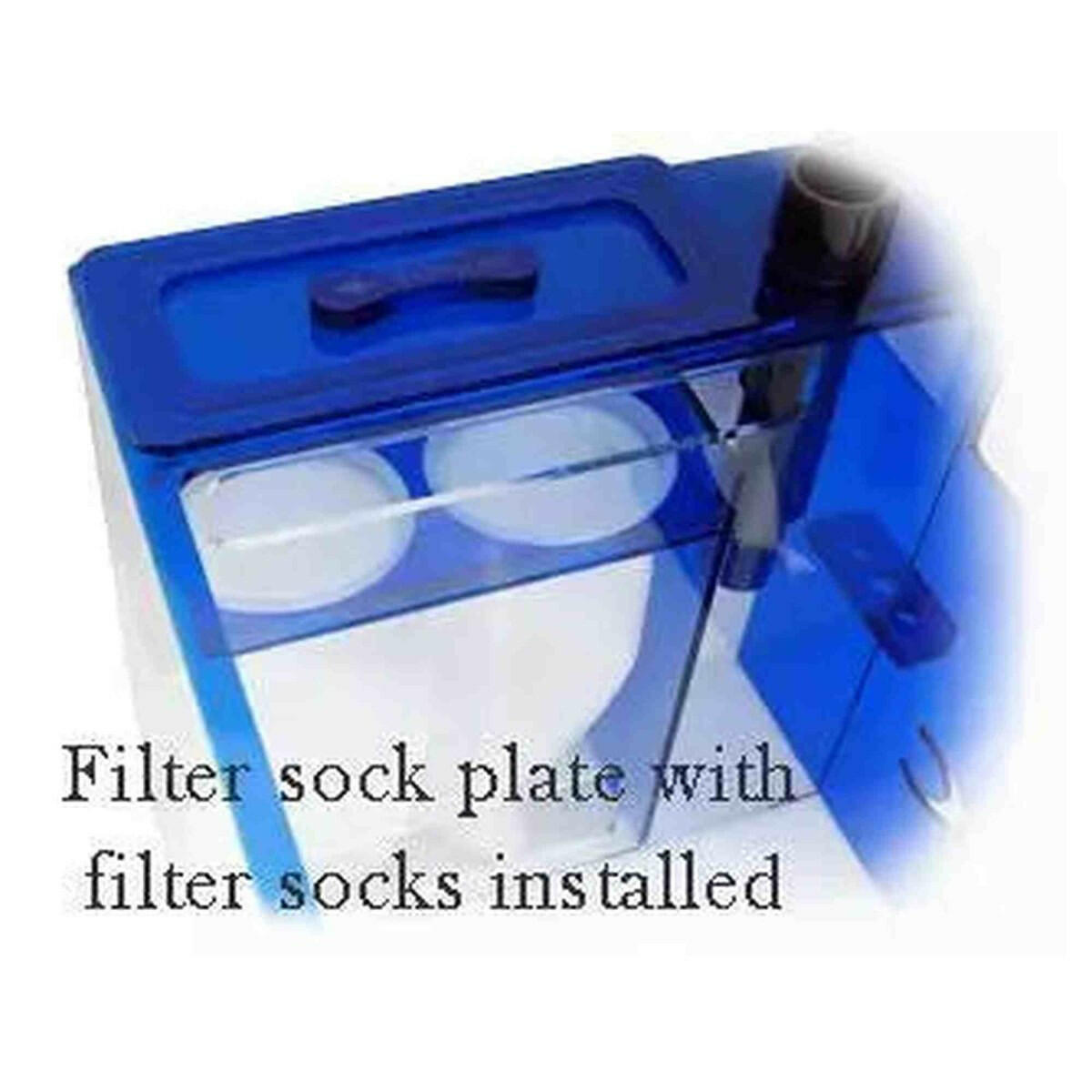

The Filter Sock Plate can be installed with filter socks as shown. The SAPPHIRE39 had three 4″ socks, SAPPHIRE34 model shown in images.

The Foam Block Distribution Plate is perforated with holes and can be used when filter socks are not desired or in the case when the filter socks need to be changed or cleaned but replacement socks are not readily available and you want to maintain some level of mechanical filtration. In this case, simply remove the filter socks and install the Foam Block Distribution Plate with the foam block.

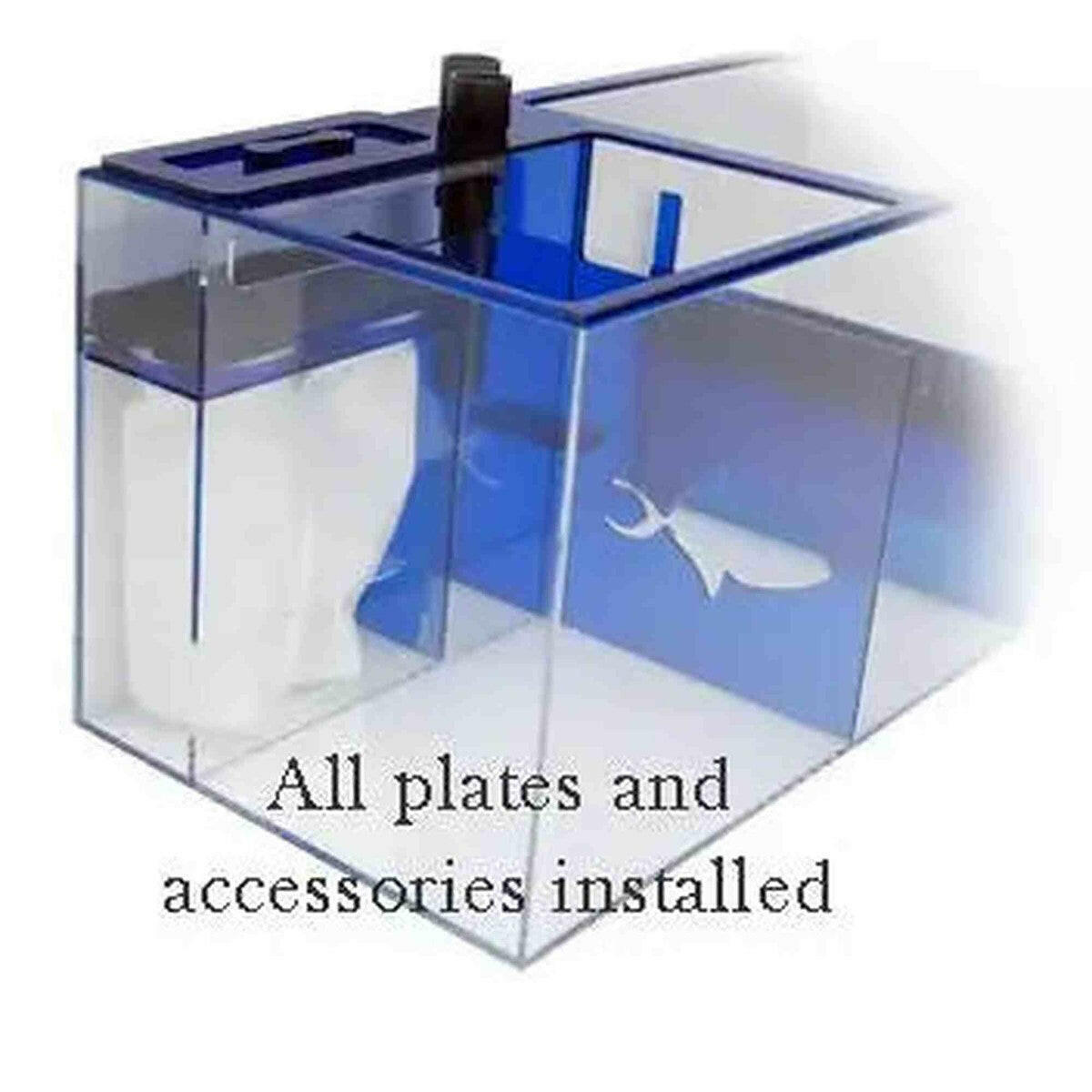

The Foam Block Distribution Plate may also be used on top of the Filter Sock Plate with filter socks. This configuration helps to distribute the water more evenly across all socks so that the filter socks will last longer before clogging and will clog at the same time. This also helps to silence the water noise by slowing down and spreading the water more evenly across the surface area of all of the socks. In this configuration, the foam block filter can be placed on top to enhance even further the silencing and distribution of water and also allow even longer times before the socks become clogged by providing a pre-filter before the socks. This configuration is shown in the image and is the default configuration.

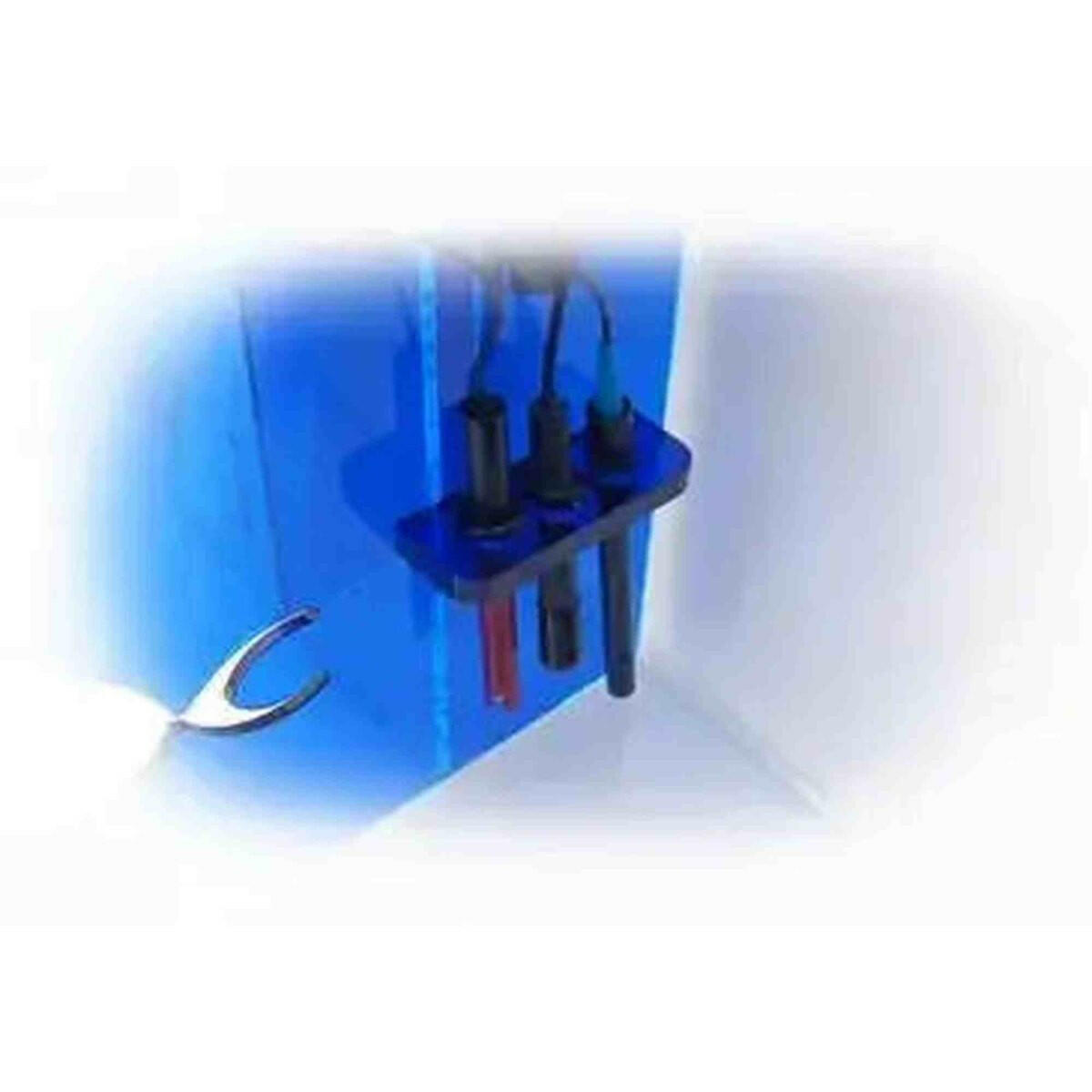

Three Slot Probe Holder

The SAPPHIRE39 come with a probe holder that can hold up to three probes. The two outside holes are 0.63” in diameter and the center hole is 0.8” in diameter to fit different sized probes.

Adjustable Water Level with Self Adjusting Foam Block

Water level in the sump is adjustable from 7” to 9.5” to accommodate for the water height requirements for different protein skimmers. Simply move the baffle to the desired height location and tighten the two bolts to hold in place.

As the water level is adjusted by sliding the wall up and down, the foam block filter and the top perforated platform also move up and down automatically. This is important to maintain the correct location of the foam block sponge filter with respect to the sump water height and also to maximize the media capacity for the bottom platform.

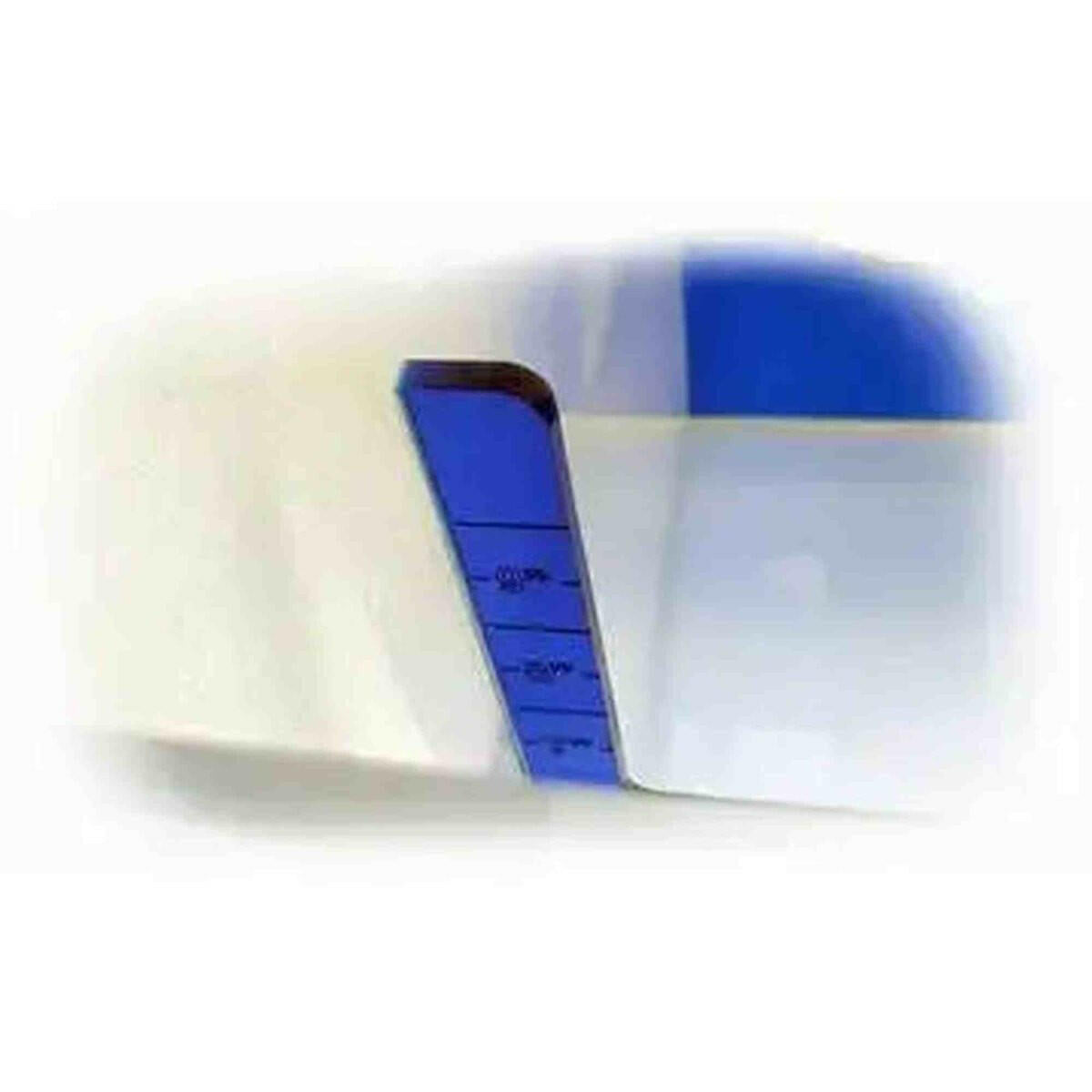

Laser Engraved Water Level Indicator

Subtle water level height indicator is laser engraved on the inside wall to help when setting the adjustable water level to to the desired water height based on protein skimmer requirements.

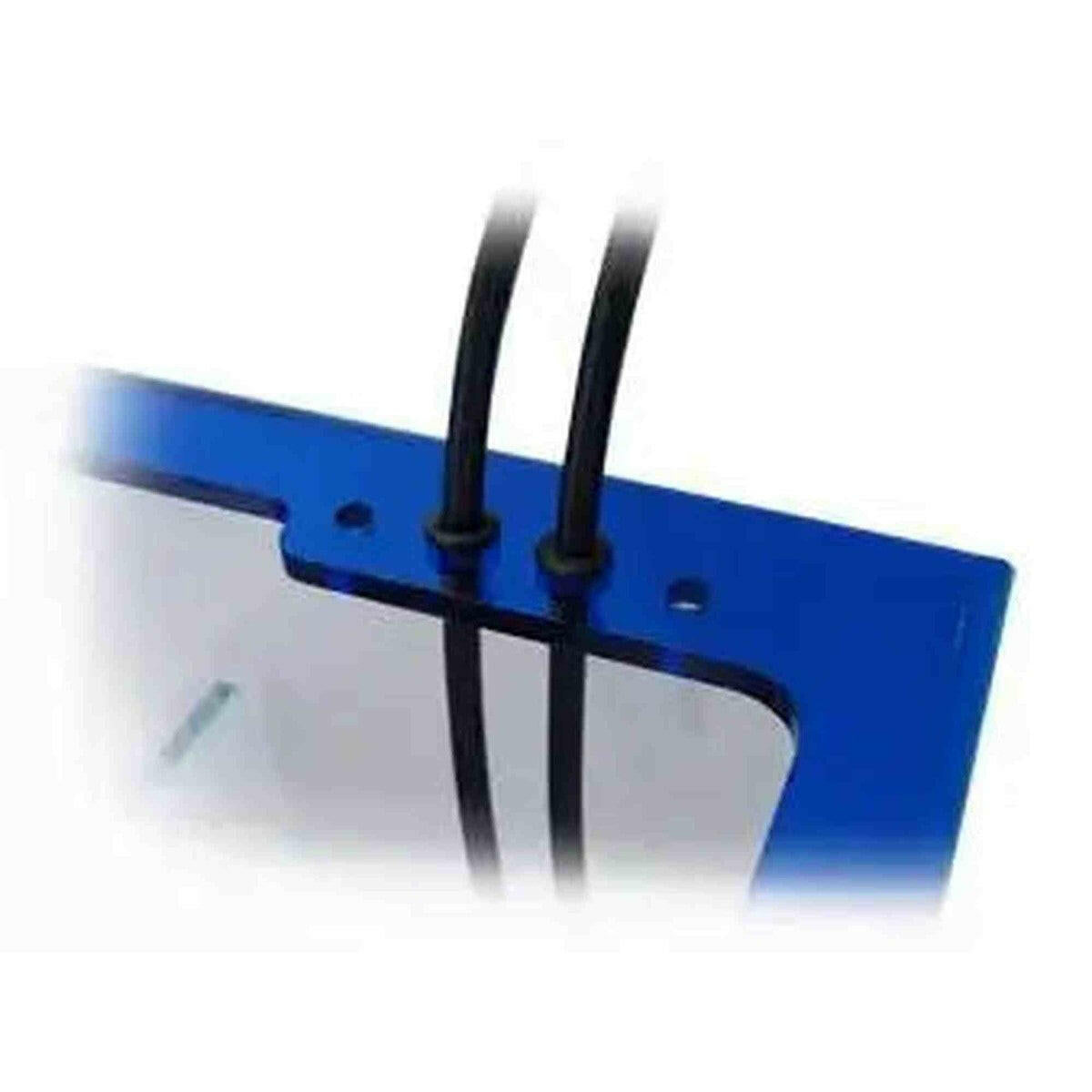

Dosing, ATO Hose Holder

All Sapphire sumps also come with 4 holes in the top support brace for holding in place 1/4” OD tubing from reactors, dosing containers or ATOs.

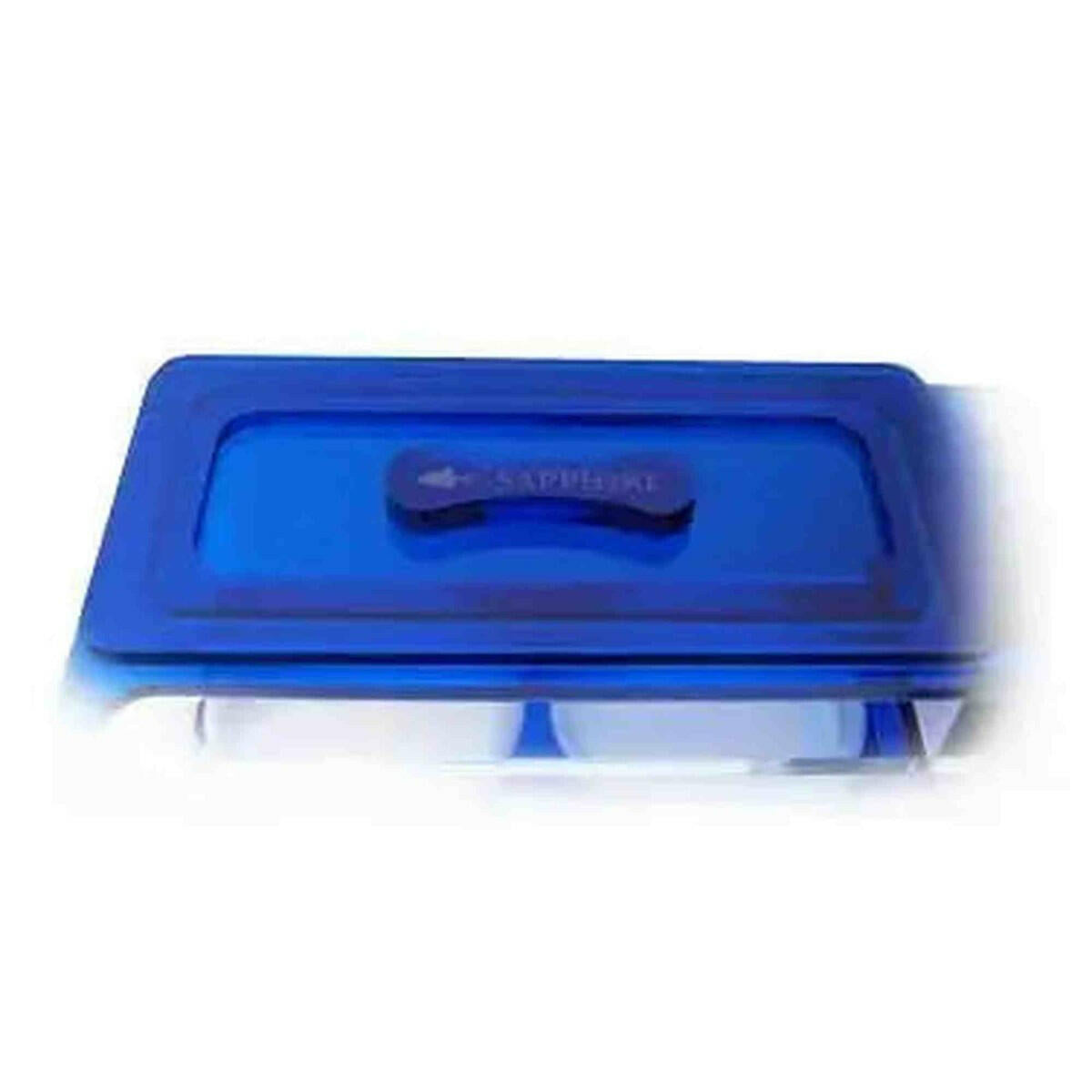

Laser Etched Lid

The laser etched lid over the interchangeable plate section allows for easy access to the filter socks and foam filter while providing suppressed noise and splashing.

The Trigger Systems Sapphire Sump 39" x 16" x 15" is a top-tier sump system designed for enhancing the efficiency and performance of your reef tank. This sump features advanced filtration capabilities that ensure your aquarium's water is clean, clear, and healthy for your marine inhabitants. Perfect for the dedicated aquarist, this sump provides a robust setup that meets the demands of both beginner and expert hobbyists alike.

One of the standout features of the Trigger Systems Sapphire Sump is its incredible filtration system. This sump incorporates multiple zones designed specifically to maximize the contact time water has with filtration media. Beginning with a large filter sock holder that accommodates multiple socks, the water then flows through a dedicated refugium section, which can be used to cultivate beneficial macroalgae or other filtration media to aid in nutrient export. The advanced design of the entire system helps in maintaining lower nitrate levels and provides a cleaner, more stable environment for all your aquatic inhabitants.

Durability and aesthetics are also critical factors. Constructed from high-quality acrylic, the Trigger Systems Sapphire Sump is built to last while offering a visually appealing design. The sapphire-blue accents add a stylish touch, making it not just a functional piece of equipment but also an attractive addition to your setup. The sump’s compact 39" x 16" x 15" dimensions allow it to fit comfortably under most standard aquarium stands, so you can efficiently manage your filtration without taking up excessive space.

The ease of maintenance and installation is another important aspect of the Trigger Systems Sapphire Sump. The sump is designed with numerous bulkhead fittings and probe holders, which make it exceedingly straightforward to set up and optimize for various filtration equipment. The clear acrylic makes it easy to observe the sump's operation and monitor the health of your filtration media without any hassles. Regular maintenance is simple, thanks to the ample access points that allow for easy cleaning and component replacement.

In addition to its primary attributes, the Trigger Systems Sapphire Sump also includes features such as adjustable water level controls, which provide the flexibility needed to fine-tune the operation according to your system’s specific requirements. The quiet performance makes it suitable for home aquariums where noise levels need to be kept minimal. With the Trigger Systems Sapphire Sump, you’re not just investing in a sump; you’re upgrading your entire aquarium experience.

Overall, the Trigger Systems Sapphire Sump is an excellent choice for any aquarium enthusiast seeking to provide their marine life with the best possible environment. It combines durability, functionality, and aesthetic appeal into one comprehensive package. Whether you're dealing with a new setup or looking to enhance your current configuration, this sump offers the reliability and performance necessary for a thriving reef tank.
