Trigger Systems Sapphire Sump 26" x 13" x 15"

Trigger Systems Sapphire Sump: Superior Filtration for Your Aquarium

SAPPHIRE26

Dimensions: 26″ long x 13″ wide x 15″ high
Skimmer Section: 8.25″ x 10″
Center/Refugium Section: 7.75″ x 12.5″
Return Pump Section: 5″ x 12.5″
Total Water Volume: 20.4 gallons
Skimmer Water Level: 7″ to 9.5″ adjustable
Drain Input Fittings: 1″ (x1)
Filter Socks: 4″ (x1)

The Sapphire series is identical to the Emerald series except that it comes in a limited edition Sapphire blue color. Several features of this series are not found anywhere else. Some of the features of the SAPPHIRE26 are:

• Interchangeable plates (Patent Pending)

• Laser etched lid to prevent splashing and reduce noise

• Adjustable water level

• Self adjusting foam block platform (Patent Pending)

• Dual platforms

• Laser engraved water level indicator

• Three position probe holder

• 0.25″ hose holder for dosing and ATO inputs

• Protein skimmer section

• Refugium section

• Sapphire blue coloring to block light and prevent unwanted algae growth in other sections

SAPPHIRE26 SECTION DETAILS|

The SAPPHIRE26 has 4 main sections. Water enters the sump into a dedicated section where the water will then flow over into Section 1. Section 1 is the configurable interchangeable plate area allowing for filter sock and/or foam block mechanical filtration. This area is covered with a lid to prevent water splashing and reduce noise. Water then flows out the bottom of Section 1 into Section 2.

Section 2 is typically where the protein skimmer is located. Water then flows through the ‘Trigger Symbol’ cutout into Section 3.

Section 3 is the refugium section. The water then flows over the adjustable water level baffle through 2 perforated platforms and under the last baffle into Section 3. The top perforated platform comes with a foam block filter and the bottom one is open to use for several different filtration methods (bag of carbon, bio balls, bio media, rubble rock, etc.).

Section 4 is the return section where the return pump will sit, pumping water back to the display tank.

Key Features

1. Interchangeable plates

2. Lid to prevent splashing and reduce noise

3. Three position probe holder

4. 0.25″ hose inputs for dosing and ATO

5. Adjustable water level with self adjusting top platform

6. Dual platforms

7. Laser engraved water level indicator

8. Full top support brace to prevent bowing

Interchangeable Plates

The SAPPHIRE26 comes with the following accessories for Section 1:

• Filter Sock Plate

• 4″ Filter Sock (100 micron rating)

• Foam Block Distribution Plate

• Filter Foam Block

The Filter Sock Plate can be installed with filter socks as shown. SAPPHIRE26 has a single 4″ sock, SAPPHIRE34 model shown in the images.

The Foam Block Distribution Plate is perforated with holes and can be used when filter socks are not desired or in the case when the filter socks need to be changed or cleaned but replacement socks are not readily available and you want to maintain some level of mechanical filtration. In this case, simply remove the filter socks and install the Foam Block Distribution Plate with the foam block.

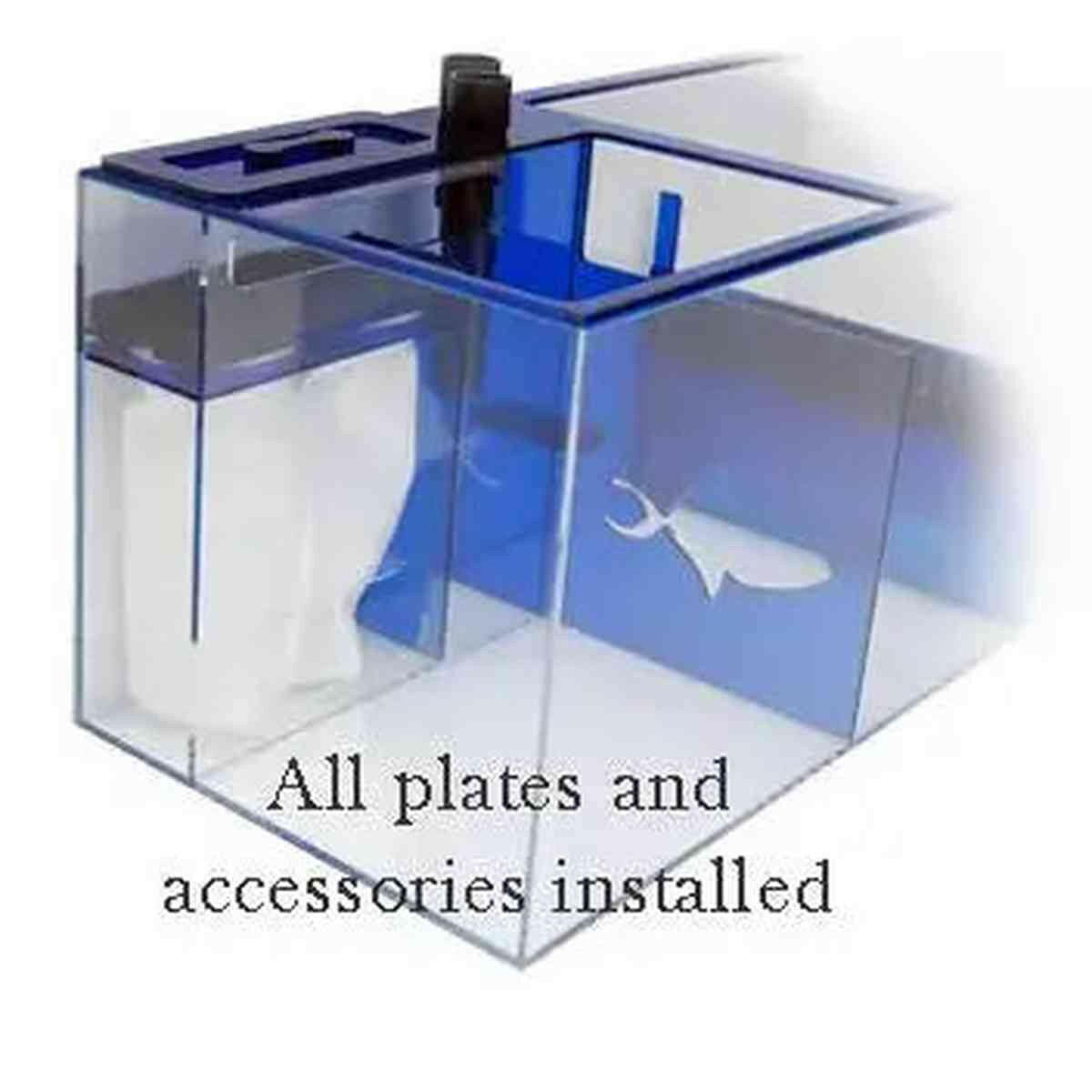

The Foam Block Distribution Plate may also be used on top of the Filter Sock Plate with filter socks. This configuration helps to distribute the water more evenly across all socks so that the filter socks will last longer before clogging and will clog at the same time. This also helps to silence the water noise by slowing down and spreading the water more evenly across the surface area of all of the socks. In this configuration, the foam block filter can be placed on top to enhance even further the silencing and distribution of water and also allow even longer times before the socks become clogged by providing a pre-filter before the socks. This configuration is shown in the image and is the default configuration.

Three Slot Probe Holder

The SAPPHIRE26 comes with a probe holder that can hold up to three probes. The two outside holes are 0.63” in diameter and the center hole is 0.8” in diameter to fit different sized probes.

Adjustable Water Level with Self Adjusting Foam Block

Water level in the sump is adjustable from 7” to 9.5” to accommodate for the water height requirements for different protein skimmers. Simply move the baffle to the desired height location and tighten the two bolts to hold in place.

As the water level is adjusted by sliding the wall up and down, the foam block filter and the top perforated platform also move up and down automatically. This is important to maintain the correct location of the foam block sponge filter with respect to the sump water height and also to maximize the media capacity for the bottom platform.

Laser Engraved Water Level Indicator

Subtle water level height indicator is laser engraved on the inside wall to help when setting the adjustable water level to to the desired water height based on protein skimmer requirements.

Dosing, ATO Hose Holder

All Sapphire sumps also come with 4 holes in the top support brace for holding in place 1/4” OD tubing from reactors, dosing containers or ATOs.

Laser Etched Lid

The laser etched lid over the interchangeable plate section allows for easy access to the filter socks and foam filter while providing suppressed noise and splashing.

Enhancing the filtration of your marine aquarium is critical to maintaining pristine water conditions, and the Trigger Systems Sapphire Sump is designed precisely for this purpose. With its dimensions of 26 inches in length, 13 inches in width, and 15 inches in height, this sump is versatile enough to fit under most standard aquarium stands, thereby maximizing your aquascaping potential without compromising on quality or performance.

What sets the Trigger Systems Sapphire Sump apart from the competition is its robust construction and thoughtful design. The sump is made from high-quality acrylic material, which not only ensures long-lasting durability but also provides great clarity, so you can easily monitor the sump's internal workings. This sump is particularly favored by reef tank enthusiasts because it offers superior filtration capabilities. These features include a dedicated skimmer chamber, a refugium section, and adjustable water levels, all of which contribute to maintaining the best possible environment for marine life.

Another noteworthy feature of the Trigger Systems Sapphire Sump is its exceptional ease of use. The spacious filter sock holder can accommodate up to four-inch filter socks, which enhances mechanical filtration by trapping detritus and particulates before they can break down and impact water quality. Additionally, the built-in refugium area allows for the cultivation of beneficial macroalgae and microorganisms, which play a crucial role in nutrient export and biological filtration. The adjustable water levels make it easy for aquarists to customize the sump to their specific needs, ensuring the optimal performance of protein skimmers and other equipment.

Proper maintenance is another significant advantage offered by this sump. Its design simplifies cleaning and routine upkeep, meaning you spend less time on maintenance and more time enjoying your aquarium. The modular nature of the sump means that individual components can be replaced or upgraded without disrupting the entire system, adding to its longevity and adaptability.

In summary, the Trigger Systems Sapphire Sump 26" x 13" x 15" is an excellent addition to any serious aquarist’s setup. Its combination of sturdy construction, superior filtration capabilities, and user-friendly features make it a top choice for maintaining a healthy and thriving marine aquarium. Whether you're looking to upgrade your current filtration system or setting up a new tank, the Trigger Systems Sapphire Sump will meet and exceed your expectations.
