Trigger Systems Sapphire Cube 20" x 20" x 15"

Trigger Systems Sapphire Cube: The Ultimate 20" x 20" x 15" Sump System

SAPPHIRE20C

Dimensions: 20″ long x 20″ wide x 15″ high
Skimmer Section: 11.625″ x 9″
Refugium Section: 19.5″ x 6″
Return Pump Section: 10.25″ x 7.625″
Total Water Volume: 24.3 gallons
Skimmer Water Level: 7″ to 9.5″ adjustable
Drain Input Fittings: 1″ (x1)
Filter Socks: 4″ (x1)

The Sapphire series is identical to the Emerald series except that it comes in a limited edition Sapphire blue color. Several features of this series are not found anywhere else. Some of the features of the SAPPHIRE20C are:

• Interchangeable plates (Patent Pending)

• Laser etched lid to prevent splashing and reduce noise

• Adjustable water level

• Laser engraved water level indicator

• Three position probe holder

• 0.25″ hose holder for dosing and ATO inputs

• Protein skimmer section

• Refugium section

• Sapphire blue coloring to block light and prevent unwanted algae growth in other sections

SAPPHIRE20C SECTION DETAILS|

The SAPPHIRE20C has 4 main sections. Water enters the sump into a dedicated section where the water will then flow over into Section 1. Section 1 is the configurable interchangeable plate area allowing for filter sock and/or foam block mechanical filtration. This area is covered with a lid to prevent water splashing and reduce noise. Water then flows out the bottom of Section 1 into Section 2.

Section 2 is typically where the protein skimmer is located. Water then flows through the ‘Trigger Symbol’ cutout into Section 3.

Section 3 is the refugium section. The water then flows over the adjustable water level baffle through a platform that contains a foam filter block and then under the last baffle into Section 3.

Section 4 is the return section where the return pump will sit, pumping water back to the display tank.

Key Features

1. Interchangeable plates

2. Lid to prevent splashing and reduce noise

3. 0.25″ hose inputs for dosing and ATO

4. Laser engraved water level indicator

5. Adjustable water level

6. Three position probe holder

7. Full top support brace to prevent bowing

Interchangeable Plates

The SAPPHIRE20C comes with the following accessories for Section 1:

• Filter Sock Plate

• 4″ Filter Socks (100 micron rating)

• Foam Block Distribution Plate

• Filter Foam Block

The Filter Sock Plate can be installed with filter socks as shown. The SAPPHIRE20C has a single 4″ sock. SAPPHIRE34 model shown in the images.

The Foam Block Distribution Plate is perforated with holes and can be used when filter socks are not desired or in the case when the filter socks need to be changed or cleaned but replacement socks are not readily available and you want to maintain some level of mechanical filtration. In this case, simply remove the filter socks and install the Foam Block Distribution Plate with the foam block.

The Foam Block Distribution Plate may also be used on top of the Filter Sock Plate with filter socks. This configuration helps to distribute the water more evenly across all socks so that the filter socks will last longer before clogging and will clog at the same time. This also helps to silence the water noise by slowing down and spreading the water more evenly across the surface area of all of the socks. In this configuration, the foam block filter can be placed on top to enhance even further the silencing and distribution of water and also allow even longer times before the socks become clogged by providing a pre-filter before the socks. This configuration is shown in the image and is the default configuration.

Three Slot Probe Holder

The SAPPHIRE20C comes with a probe holder that can hold up to three probes. The two outside holes are 0.63” in diameter and the center hole is 0.8” in diameter to fit different sized probes.

Laser Engraved Water Level Indicator

Subtle water level height indicator is laser engraved on the inside wall to help when setting the adjustable water level to to the desired water height based on protein skimmer requirements.

Dosing, ATO Hose Holder

All Emerald sumps also come with 4 holes in the top support brace for holding in place 1/4” OD tubing from reactors, dosing containers or ATOs.

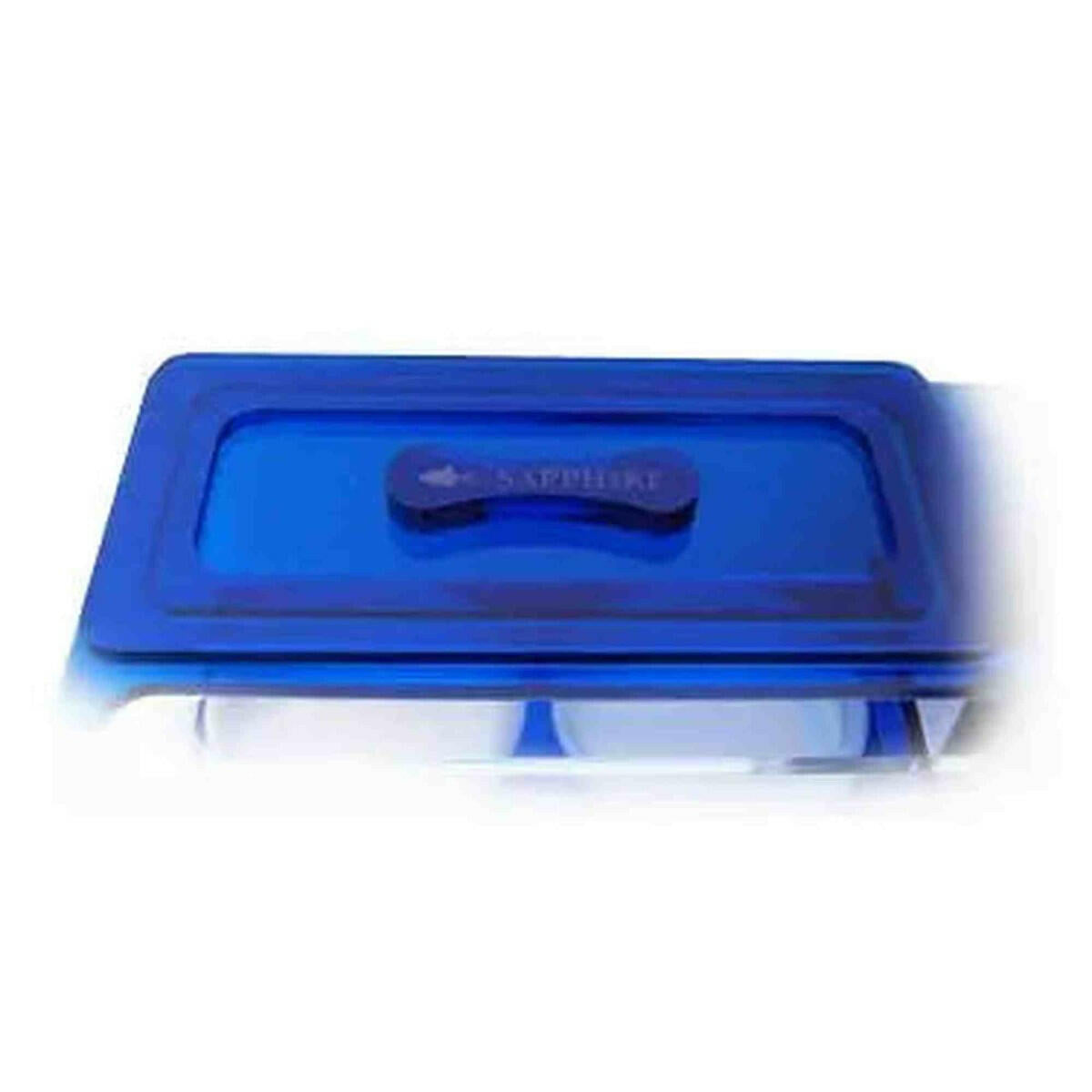

Laser Etched Lid

The laser etched lid over the interchangeable plate section allows for easy access to the filter socks and foam filter while providing suppressed noise and splashing.

The Trigger Systems Sapphire Cube has been meticulously crafted to deliver top-notch performance for both marine and reef tank enthusiasts. This 20" x 20" x 15" sump system is designed not only for functionality but also for aesthetics, ensuring that your aquarium setup remains both effective and visually pleasing. Featuring a sleek, modern design with premium materials, this sump system is a definitive choice for anyone serious about their aquatic setup.

What sets the Trigger Systems Sapphire Cube apart from other sump systems is its exceptional build quality and innovative features. Made from high-quality acrylic, the Sapphire Cube is durable and long-lasting, capable of withstanding the rigors of a busy aquarium environment. Its thoughtfully designed compartments provide ample space for all types of filtration media, enabling you to maintain clean and healthy water conditions for your marine life.

One of the standout features of the Trigger Systems Sapphire Cube is its versatility. Whether you are running a reef tank packed with delicate corals or a marine tank with a variety of fish, this sump system can handle it all. The easy-to-use layout and multiple filter sock options allow for customized filtration setups, so you can tailor the system to meet the specific needs of your aquarium.

Another advantage of the Trigger Systems Sapphire Cube is its quiet operation. Equipped with noise-reducing mechanisms, this sump system ensures that your aquatic environment remains serene, without the constant hum of filters and pumps. This is particularly beneficial if your aquarium is in a living space where peace and quiet are valued.

Maintenance is also a breeze with the Trigger Systems Sapphire Cube. The easily removable compartments and filter socks make cleaning and replacement straightforward, minimizing downtime and keeping your aquarium in optimal condition. Additionally, the clear acrylic design allows for easy monitoring of water levels and filter media, so you can quickly address any potential issues.

Beyond its practical benefits, the Sapphire Cube also boasts a striking design that complements the aesthetic of modern aquariums. Its crystal-clear acrylic construction and sleek lines make it an attractive addition to any setup, providing an unobtrusive yet functional solution for your filtration needs.

In conclusion, the Trigger Systems Sapphire Cube 20" x 20" x 15" sump system offers a blend of performance, durability, and elegance that is hard to match. It is a flexible and reliable choice for any aquarium enthusiast looking to enhance the health and appearance of their marine or reef tank. With its intuitive design and high-quality construction, the Sapphire Cube stands out as a top-tier option in the world of aquarium sump systems.
