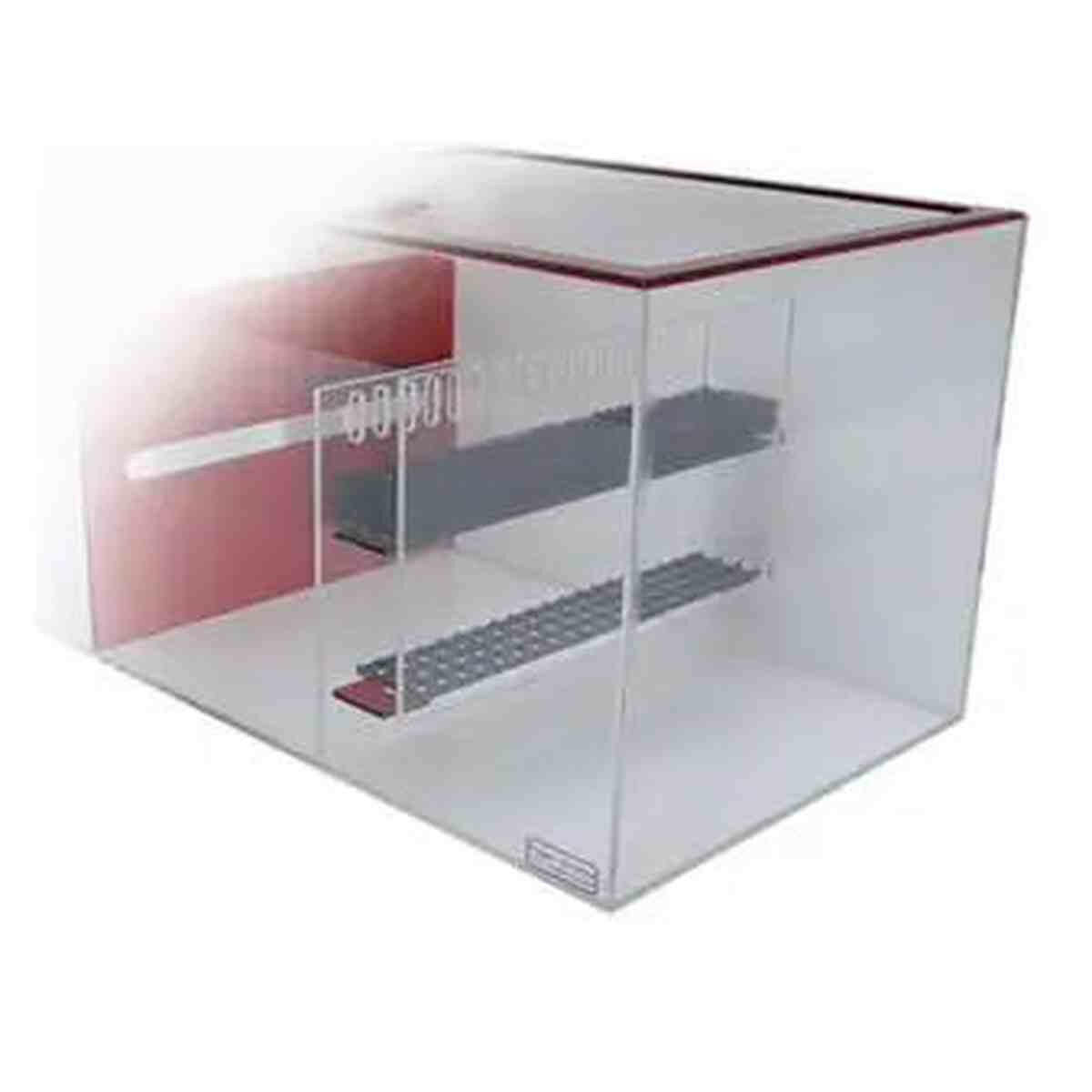

Trigger Systems Ruby Cube 30" x 14" x 15"

Efficient Filtration with Trigger Systems Ruby Cube Sump

RUBY30S

Dimensions: 30″ long x 14″ wide x 15″ high
Drain/Skimmer Section: 11″ x 13.5″
Center/Refugium Section: 9.5″ x 13.5″
Return Pump Section: 6″ x 13.5″
Total Water Volume: 25.0 Gallons
Skimmer Water Level: 9.5″ fixed
Drain Input Fitting: 1″ (x2)
Filter Sock: 4″ (x2)

The RUBY30S sump is loaded with features and comes with the trademark dark RUBY translucent red material. This sump can be used as a berlin style sump or a refugium style sump.  Some features of the RUBY30S sump are:

• 3 position probe holder

• RUBY red wall to block light and prevent unwanted algae growth in skimmer section

• Locking filter sock holder

• Dual platforms

• Foam filter block for top platform

• Protein skimmer section

• Refugium section

RUBY30S SECTION DE|

The RUBY30S has 3 main sections. Water drains from the tank into section 1 through the two 100 micron provided filter socks. Section 1 is typically where the protein skimmer sits. Water then flows through a slit in the first baffle into section 2.

Section 2 is typically used as a refugium. If a refugium is not desired, then the protein skimmer or other equipment can be housed in section 2. The water then flows over the second baffle through 2 perforated platforms and under the third baffle into section 3. The top perforated platform holds the included foam block filter and the bottom platform is open to use for several different filtration methods (bag of carbon, bio balls, rubble rock, etc.).

Section 3 is the return section where the return pump will sit, pumping water back to the display tank.

Key Features

1. Drawstring tabs for 7″ drawstring filter socks

2. Locking filter sock holder

3. Three position probe holder

4. Full top support brace to prevent bowing

5. Dual media platforms

Dual Media Platforms

There are two platforms in the area before the return section. The top platform comes with a foam filter block and the bottom one is open to use for several different filtration methods (bag of carbon, bio balls, bio sponge, heater, rubble rock, etc.).

Three Slot Probe Holder

The RUBY30S sumps come with a probe holder that can hold up to three probes. The two outside holes are 0.63” in diameter and the center hole is 0.8” in diameter to fit different sized probes.

Drawstring Tabs

Tabs are located on the top support brace in front of the 1” bulkhead fittings. The purpose of these tabs is to provide a location for tying off 7” diameter filter socks that have drawstrings. The 7″ socks allow for longer times before the filter sock gets clogged and needs to be cleaned or replaced.

Locking Filter Sock Holder

Filter socks snap and lock into the filter sock holders to secure the sock from falling out when it becomes clogged. The 4” filter socks are 100 micron rating.

The Trigger Systems Ruby Cube 30" x 14" x 15" Sump is an outstanding addition to any aquarium setup. This high-quality sump not only ensures efficient filtration but also greatly enhances the health and clarity of your aquarium's water. Constructed with durable materials and designed for optimal performance, the Ruby Cube Sump is a must-have for serious aquarists.

One of the key features of the Trigger Systems Ruby Cube Sump is its compact design. Despite its small size of 30" x 14" x 15", this sump offers ample space for various filtration techniques. It includes multiple chambers that can house filtration media, skimmers, and other essential aquarium equipment. The intelligently designed layout helps to maximize space while ensuring that each component functions at its best.

Another advantage of the Trigger Systems Ruby Cube Sump is its durability. Made from top-grade materials, this sump is built to withstand the rigors of continuous use. The robust construction ensures that it can handle heavy loads of water and equipment, making it a reliable choice for both novice and experienced aquarists.

What sets the Trigger Systems Ruby Cube Sump apart from other sumps is its ease of maintenance. The user-friendly design allows for quick and hassle-free cleaning, so you can spend more time enjoying your aquarium and less time worrying about maintenance. The removable filter socks and easy-access compartments make upkeep a breeze.

In conclusion, the Trigger Systems Ruby Cube 30" x 14" x 15" Sump is an excellent investment for anyone looking to improve the filtration of their aquarium. Its compact size, durable construction, and user-friendly design make it a top choice among aquarists. Whether you're a beginner or a seasoned professional, this sump will help you achieve a pristine and healthy aquarium environment.
