Trigger Systems Ruby Cube Sump

RUBY20C

Dimensions: 20″ long x 20″ wide x 15″ high
Drain/Skimmer Section: 11.625″ x 12″
Front/Refugium Section: 19.5″ x 7.25″
Return Pump Section: 12″ x 7.625″
Total Water Volume: 24.3 gallons
Skimmer Water Level: 7″ to 9.5″ adjustable
Drain Input Fitting: 1″ (x1)
Filter Sock: 4″ (x1)

The RUBY20C sump is loaded with features and comes with the trademark dark RUBY translucent red material. This sump can be used as a berlin style sump or a refugium style sump.  Some features of the RUBY20c sump are:

• 3 position probe holder

• Adjustable water level

• RUBY red wall to block light and prevent unwanted algae growth in skimmer section

• Locking filter sock holder

• Foam filter block

• Protein skimmer section

• Refugium section

The RUBY20C has 3 main sections. Section 1 of the CUBE design is where the water from the main tank enters through the filter sock. This is the section where the protein skimmer typically sits. Water flows from this section through a slit in the baffle into Section 2.

Section 2 is typically used as the refugium section. Having the refugium facing the front is a nice feature allowing easy maintenance and visibility of the refugium. Water flows to the right and then towards the back over the baffle through the overflow teeth. The wall with the overflow teeth moves up and down to set the water level for Section 1 and Section 2. The water then goes through a foam block and under a baffle into Section 3.

Section 3 is the return section where the return pump will sit, pumping water back to the display tank.

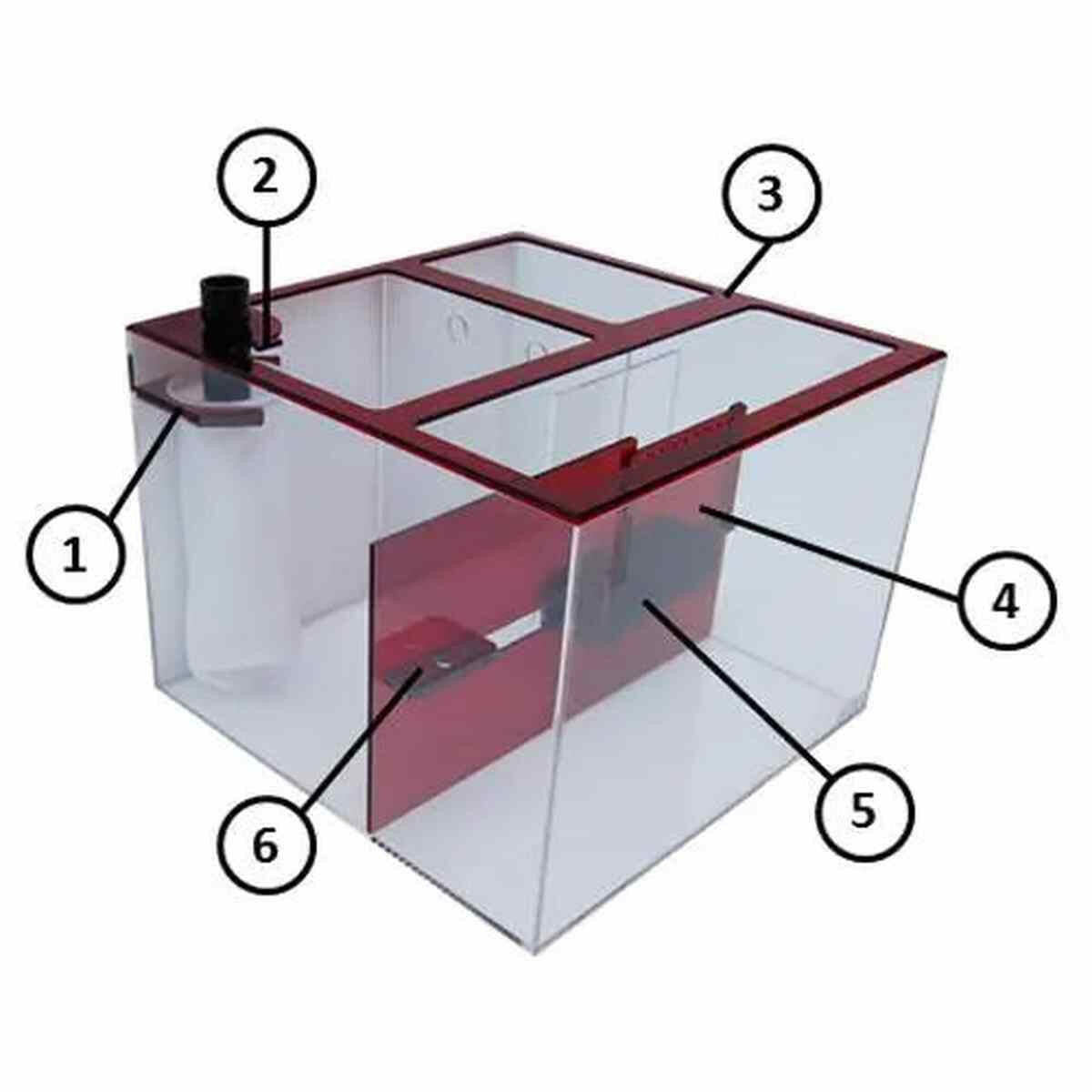

Key Features

1. Locking filter sock holder

2. Drawstring tab for 7″ drawstring filter sock

3. Full top support brace to prevent bowing

4. Adjustable water level

5. Filter foam block

6. Three position probe holder

Adjustable Water Level

Water level in the sump is adjustable from 7″ to 9.5″ to accommodate water height requirements for different protein skimmers. Simply move the baffle to the desired height location and tighten the two bolts to hold in place.

Three Slot Probe Holder

The RUBY20C sumps come with a probe holder that can hold up to three probes. The two outside holes are 0.63” in diameter and the center hole is 0.8” in diameter to fit different sized probes.

Drawstring Tab

A tab is located on the top support brace in front of the 1” bulkhead fittings. The purpose of this tab is to provide a location for tying off a 7” diameter filter sock that has drawstrings. The 7″ socks allow for longer times before the filter sock gets clogged and needs to be cleaned or replaced.

Locking Filter Sock Holder

Filter socks snap and lock into the filter sock holder to secure the sock from falling out when it becomes clogged. The 4” filter sock is 100 micron rating.

The Trigger Systems Ruby Cube 20" x 20" x 15" Sump is a state-of-the-art filtration system designed for aquarium enthusiasts who demand the best for their marine setups. Its compact yet spacious design caters to the stringent requirements of modern reef aquariums, making it a must-have for both novice and experienced aquarists. With a build quality that is second to none, the Trigger Systems Ruby Cube ensures your aquatic environment remains clean, healthy, and vibrant.

One of the standout features of the Trigger Systems Ruby Cube is its efficient baffle design, which maximizes water flow and filtration without causing undue turbulence. This means your delicate corals and fish will benefit from stable, optimal water conditions. The robust construction with high-quality acrylic materials ensures long-term durability and ease of maintenance. The Ruby Cube's sleek, modern aesthetics also complement any aquarium setup, adding both function and style to your display.

But the benefits don't stop there. The Trigger Systems Ruby Cube is also engineered for user-friendly setup and operation. With integrated chambers designed for protein skimmers, reactor placement, and refugium options, this sump offers flexibility in configuring your filtration needs. The thoughtful design promotes easy access for cleaning and maintenance, so you spend less time worrying about upkeep and more time enjoying your aquatic environment.

Furthermore, the Ruby Cube Sump features a built-in auto top-off reservoir. This handy addition helps maintain consistent water levels, reducing salinity swings that can stress your tank inhabitants. Whether you are upgrading from a smaller sump or setting up a high-end reef tank for the first time, the Trigger Systems Ruby Cube 20" x 20" x 15" Sump stands out as a top-tier choice, ensuring your marine life thrives in optimal conditions.

Investing in the Trigger Systems Ruby Cube is more than just purchasing a sump; it is committing to the health and beauty of your aquarium. With its precision engineering, exceptional material quality, and user-centric designs, this sump will help you achieve a pristine aquatic environment, securing the long-term well-being of your underwater world. So, if you're serious about your marine setup, the Trigger Systems Ruby Cube should be at the top of your equipment list. Make the smart choice and elevate your aquarium experience today with the Ruby Cube Sump.
