Trigger Systems Crystal Sump 36" x 14" x 15" for Advanced Filtration

Dimensions: 36″ long x 14″ wide x 15″ high
Drain/Skimmer Section: 12″ x 13.5″
Center/Refugium Section: 12.25″ x 13.5″
Return Pump Section: 8″ x 13.5″
Total Water Volume: 30.6 gallons
Skimmer Water Level: 9.5″ fixed
Drain Input Fitting: 1″ (x2)
Filter Sock: 4″ (x2)

The CRYSTAL series sumps are reasonably priced and have the same design and quality as our RUBY series sumps but with all clear material. The CRYS36S can be used as a berlin style sump or a refugium style sump.  Some features of the CRYS36S sump are:

• Locking filter sock holder

• Dual platforms

• Solid top support brace to prevent bowing

• Foam filter block for top platform

• Protein skimmer section

• Refugium section

CRYS36S SECTION DE|

The CRYS36S has 3 main sections. Water drains from the tank into section 1 through the 100 micron provided filter socks. Section 1 is typically where the protein skimmer sits. Water then flows through a slit in the first baffle into section 2.

Section 2 is typically used as a refugium. If a refugium is not desired, then the protein skimmer or other equipment can be housed in section 2. The water then flows over the second baffle through 2 perforated platforms and under the third baffle into section 3. The top perforated platform holds the included foam block filter and the bottom platform is open to use for several different filtration methods (bag of carbon, bio balls, rubble rock, etc.).

Section 3 is the return section where the return pump will sit, pumping water back to the display tank.

Key Features

1. Drawstring tabs for 7″ drawstring filter socks

2. Locking filter sock holder

3. Full top support brace to prevent bowing

4. Dual media platforms

Dual Media Platforms

There are two platforms in the area before the return section. The top platform comes with a foam filter block and the bottom one is open to use for several different filtration methods (bag of carbon, bio balls, bio sponge, heater, rubble rock, etc.).

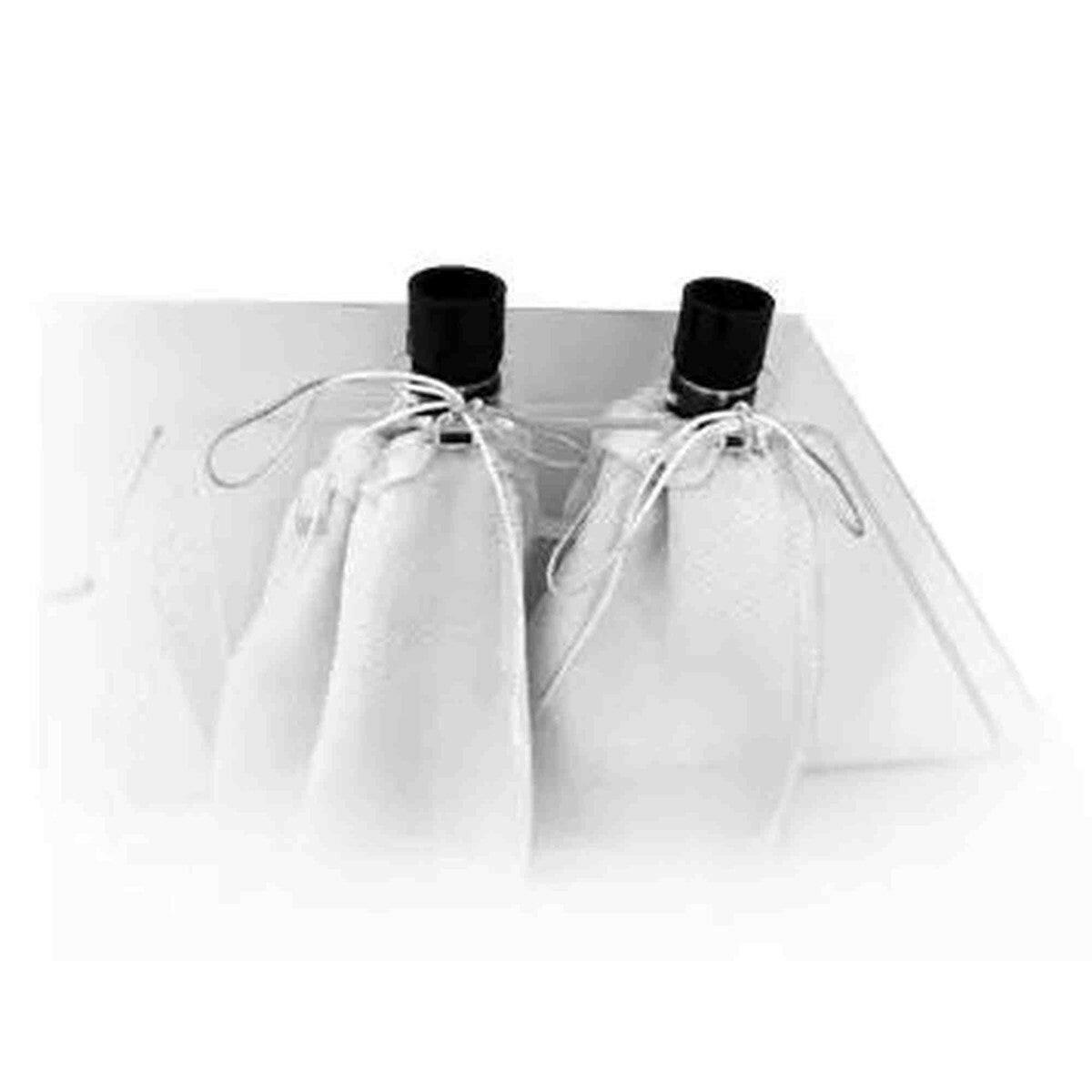

Drawstring Tabs

Tabs are located on the top support brace in front of the 1” bulkhead fittings. The purpose of this tabs is to provide a location for tying off 7” diameter filter socks that have drawstrings. The 7″ socks allow for longer times before the filter sock gets clogged and needs to be cleaned or replaced.

Locking Filter Sock Holder

Filter socks snap and lock into the filter sock holders to secure the sock from falling out when it becomes clogged. The 4” filter socks are 100 micron rating.

The Trigger Systems Crystal Sump is a state-of-the-art solution designed to enhance the efficiency and effectiveness of your marine tank's filtration system. Measuring at 36 inches in length, 14 inches in width, and 15 inches in height, this sump offers ample space to accommodate various types of equipment, making it an ideal choice for advanced aquarists. This robust and reliable system ensures that your aquatic environment remains pristine, allowing your marine life to thrive because of its high-quality materials and thoughtful design elements.

One of the standout features of the Trigger Systems Crystal Sump is its clear acrylic construction, which not only provides a sleek and modern aesthetic but also allows for easy monitoring of water levels and equipment performance. The crystal-clear walls ensure that every component within the sump is visible, so you can perform maintenance tasks more efficiently. Furthermore, the durable build means the sump can withstand the rigors of continuous use, making it a long-term investment for your marine display.

The Trigger Systems Crystal Sump also includes several compartments specifically designed to house various filtration media and devices. With dedicated sections for your protein skimmer, mechanical filtration, and refugium, this sump streamlines the entire filtration process, ensuring optimal water quality at all times. Additionally, the carefully engineered baffle system promotes consistent water flow and minimizes noise, providing a tranquil environment for both you and your marine inhabitants. Tailor-made for aquarists who demand superior performance and who want the best for their tanks, this sump model meets and exceeds expectations.

Another remarkable advantage of the Trigger Systems Crystal Sump is its user-friendly setup and maintenance. The flexible design means you can easily customize and upgrade your filtration components as needed. Whether you're a novice or an experienced hobbyist, this sump simplifies complex tasks, making it easier to achieve and maintain the perfect aquatic environment. Its straightforward design eliminates unnecessary complications, allowing for a smooth installation process.

In conclusion, the Trigger Systems Crystal Sump is more than just a container for your filtration equipment; it is a crucial component that enhances the overall health and aesthetic appeal of your marine tank. By investing in this high-quality, well-engineered sump, you are committing to creating a thriving habitat for your marine life. Don't settle for less when you can have the best with the Trigger Systems Crystal Sump, designed to deliver unmatched performance and durability for your aquatic ecosystem.
