Enhance Your Aquarium with the Trigger Systems Crystal Sump

CRYS30S

Dimensions: 30″ long x 12″ wide x 15″ high
Drain/Skimmer Section: 11″ x 11.5″
Center/Refugium Section: 9.5″ x 11.5″
Return Pump Section: 6″ x 11.5″
Total Water Volume: 21.3 gallons
Skimmer Water Level: 9.5″ fixed
Drain Input Fitting: 1″ (x1)
Filter Sock: 4″ (x1)

The CRYSTAL series sumps are reasonably priced and have the same design and quality as our RUBY series sumps but with all clear material. The CRYS30S can be used as a berlin style sump or a refugium style sump.  Some features of the CRYS30S sump are:

• Locking filter sock holder

• Dual platforms

• Solid top support brace to prevent bowing

• Foam filter block for top platform

• Protein skimmer section

• Refugium section

The CRYS30S has 3 main sections. Water drains from the tank into section 1 through the 100 micron provided filter socks. Section 1 is typically where the protein skimmer sits. Water then flows through a slit in the first baffle into section 2.

Section 2 is typically used as a refugium. If a refugium is not desired, then the protein skimmer or other equipment can be housed in section 2. The water then flows over the second baffle through 2 perforated platforms and under the third baffle into section 3. The top perforated platform holds the included foam block filter and the bottom platform is open to use for several different filtration methods (bag of carbon, bio balls, rubble rock, etc.).

Section 3 is the return section where the return pump will sit, pumping water back to the display tank.

Key Features

1. Drawstring tabs for 7″ drawstring filter socks

2. Locking filter sock holder

3. Full top support brace to prevent bowing

4. Dual media platforms

Dual Media Platforms

There are two platforms in the area before the return section. The top platform comes with a foam filter block and the bottom one is open to use for several different filtration methods (bag of carbon, bio balls, bio sponge, heater, rubble rock, etc.).

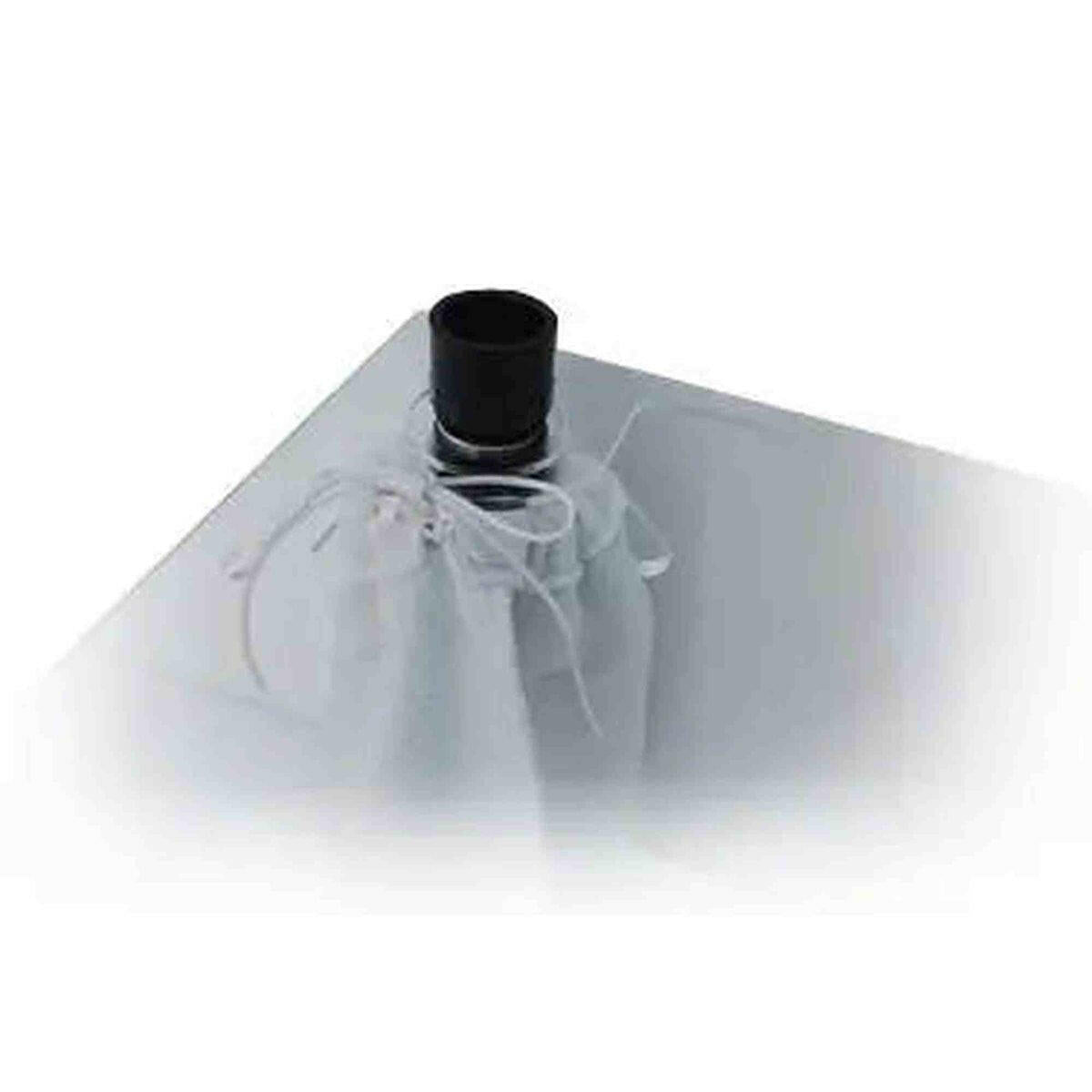

Drawstring Tabs

A tab is located on the top support brace in front of the 1” bulkhead fitting. The purpose of this tabs is to provide a location for tying off 7” diameter filter socks that have drawstrings. The 7″ socks allow for longer times before the filter sock gets clogged and needs to be cleaned or replaced.

Locking Filter Sock Holder

Filter socks snap and lock into the filter sock holders to secure the sock from falling out when it becomes clogged. The 4” filter sock is 100 micron rating.

The Trigger Systems Crystal Sump 30" x 12" x 15" is designed to provide top-notch filtration for your aquarium. Incorporating high-quality materials and innovative features, this sump is a perfect solution for both hobbyists and professionals aiming to maintain a healthy and aesthetically pleasing aquatic environment.

With its robust construction, the Trigger Systems Crystal Sump ensures durability and reliability. Made from clear, high-quality acrylic, it offers excellent visibility, so you can easily monitor your sump's performance. The Crystal Sump includes multiple chambers, allowing for the efficient separation of mechanical, chemical, and biological filtration processes. This helps in reducing toxins and ensuring water clarity, which is vital for the well-being of your aquatic inhabitants.

The design of the Trigger Systems Crystal Sump is user-friendly and customizable. The adjustable water level feature lets you tailor the sumps' operation to fit your specific needs. Furthermore, the addition of a refugium section supports the growth of beneficial macroalgae and microorganisms. These elements play a crucial role in maintaining water quality and the overall health of your aquarium.

Installation and maintenance of the Trigger Systems Crystal Sump are straightforward, which makes it an excellent choice for every aquarist. The precision-cut components and detailed instructions simplify the setup process. Routine maintenance is also hassle-free, allowing you to focus more on the enjoyment of your aquarium rather than upkeep tasks.

In conclusion, the Trigger Systems Crystal Sump 30" x 12" x 15" is a highly efficient and versatile option for improving your aquarium’s filtration system. With its superior build quality, customizable features, and ease of use, this sump is an investment that will pay off in better water quality and a more vibrant aquatic environment. Whether you are setting up a new tank or upgrading an existing one, the Trigger Systems Crystal Sump is the perfect choice.
