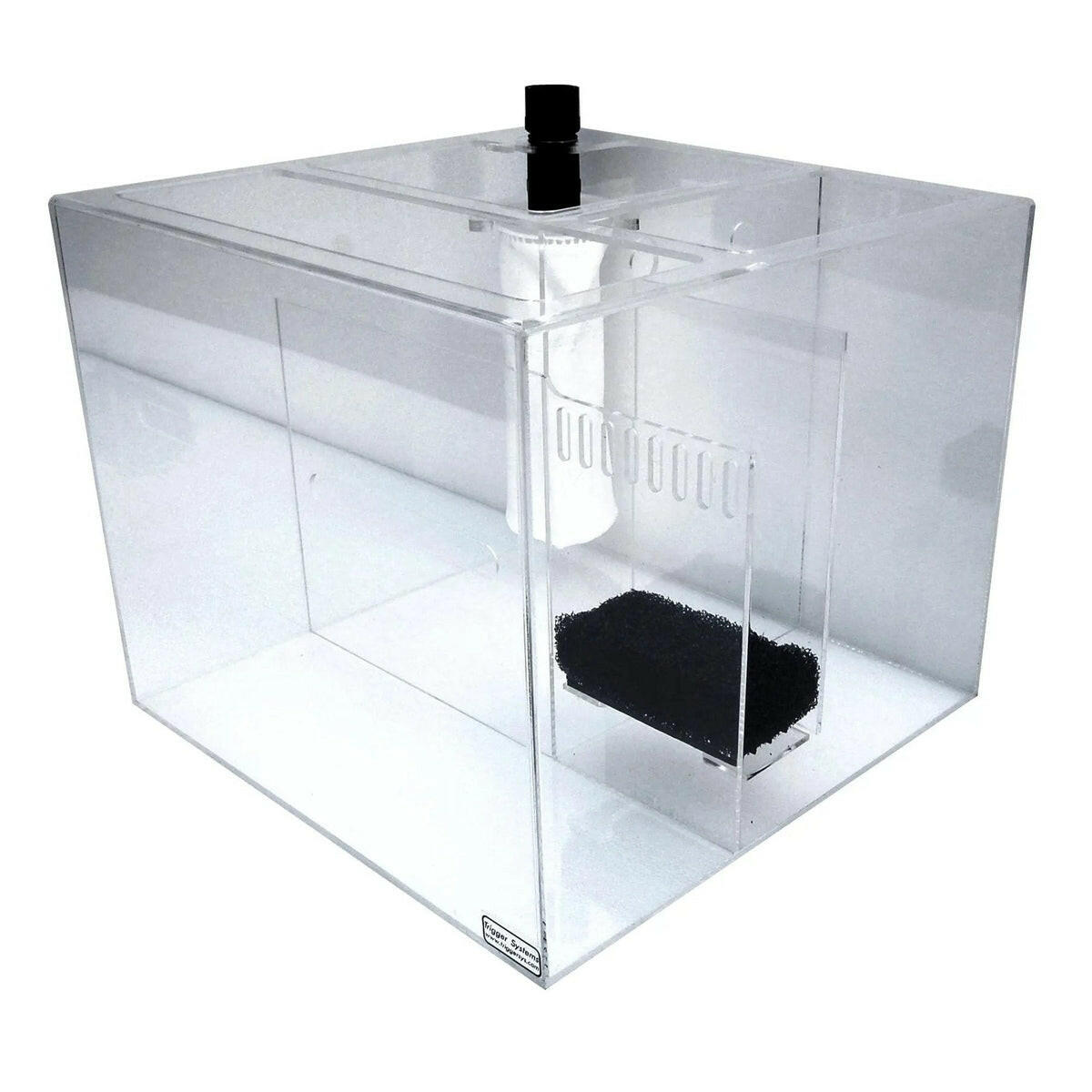

Trigger Systems Crystal Sump 20" x 12" x 15"

Trigger Systems Crystal Sump - Optimal Filtration for Your Aquarium

Investing in a quality filtration system is crucial for maintaining a clean and healthy aquarium environment. The Trigger Systems Crystal Sump, sized at 20" x 12" x 15", offers an exceptional solution for aquatic filtration needs. Designed with precision and efficiency in mind, this crystal sump ensures optimal water quality, allowing your aquatic inhabitants to thrive.

Trigger Systems specializes in aquarium sump manufacturing and are based here in the USA (Dallas, TX). All Trigger sumps come with a full top support brace which is made of a solid piece of material to prevent bowing over time from the humidity and water pressure. They also round the corners instead of squaring them which exponentially increases the strength of the corners.

The CRYSTAL series sumps are reasonably priced and have the same design and quality as Trigger Systems' RUBY series sumps but with all clear material. The CRYS20S can be used as a berlin style sump or a refugium style sump. Some features of the CRYS20S sump are:

• Locking filter sock holder
• Dual platforms
• Solid top support brace to prevent bowing
• Foam filter block for top platform
• Protein skimmer section
• Refugium section

Section Details & Water Flow Path

The CRYS20S has 3 main sections. Water drains from the tank into section 1 through the 100 micron provided filter socks. Section 1 is typically where the protein skimmer sits. Water then flows through a slit in the first baffle into section 2.

Section 2 is typically used as a refugium. If a refugium is not desired, then the protein skimmer or other equipment can be housed in section 2. The water then flows over the second baffle through 2 perforated platforms and under the third baffle into section 3. The top perforated platform holds the included foam block filter and the bottom platform is open to use for several different filtration methods (bag of carbon, bio balls, rubble rock, etc.).

Section 3 is the return section where the return pump will sit, pumping water back to the display tank.

Dual Media Platforms
There are two platforms in the area before the return section. The top platform comes with a foam filter block and the bottom one is open to use for several different filtration methods (bag of carbon, bio balls, bio sponge, heater, rubble rock, etc.).

Draw String Tabs
Tabs are located on the top support brace in front of the 1” bulkhead fittings which are included. The purpose of these tabs is to provide a location for tying off 7” diameter filter socks that have draw strings.

Locking Filter Sock Holder
Filter socks snap and lock into the filter sock holders to secure the filter sock from falling out when it becomes clogged and needs to be cleaned or replaced. The 4” filter socks are 100 micron rating.

Specifications

• Dimensions: 20″ long x 12″ wide x 15″ high
• Skimmer / Filter Sock Chamber: 10" x 11.5"
• Skimmer Water Level: 9.5″ fixed
• Drain Input Fitting: 1″ (x1)
• Filter Sock: 4″ (x1)

Investing in a quality filtration system is crucial for maintaining a clean and healthy aquarium environment. The Trigger Systems Crystal Sump, sized at 20" x 12" x 15", offers an exceptional solution for aquatic filtration needs. Designed with precision and efficiency in mind, this crystal sump ensures optimal water quality, allowing your aquatic inhabitants to thrive.

One of the standout features of the Trigger Systems Crystal Sump is its clarity and construction. Made from high-quality materials, the crystal-clear design allows for easy monitoring and maintenance. The dimensions of 20" x 12" x 15" provide ample space for water to flow and be filtered effectively. This size is ideal for various aquarium setups, offering flexibility and functionality.

Moreover, the engineering behind the Trigger Systems Crystal Sump is geared towards maximized efficiency. The compartments are strategically designed to enhance water movement and filtration, reducing dead spots and making sure that every drop of water is filtered thoroughly. This well-thought-out layout not only fosters a healthier environment for your aquatic life but also reduces maintenance efforts on your part.

Another advantage of the Trigger Systems Crystal Sump is its ease of installation and compatibility with different types of filtration media. Whether you are using mechanical, chemical, or biological filtration, this sump can accommodate your needs seamlessly. It allows for straightforward customization, so you can tailor the filtration process according to the specific requirements of your aquatic ecosystem.

Beyond technical specifications, the practical benefits of using a Trigger Systems Crystal Sump are numerous. Enhanced water clarity, reduced pollutants, and a more stable environment are just a few of the benefits you will observe. These improvements contribute to the overall health and wellbeing of your aquarium inhabitants, resulting in livelier and more vibrant aquatic life.

In conclusion, the Trigger Systems Crystal Sump 20" x 12" x 15" is an essential investment for any aquarium enthusiast looking to create an optimal aquatic environment. With its superior design, effective filtration capabilities, and ease of use, it stands out as one of the best sump options available. Prioritizing high-quality equipment like the Trigger Systems Crystal Sump ensures long-term success and satisfaction in maintaining your aquarium.
