Trigger Systems Aquamarine Triton Reef Sump 34-v2

TRITON34-v2

Dimensions: 34″ long x 15″ wide x 15″ high
Refugium Section: 15.25″ x 14.5″ (~11 gallons)
Skimmer Section: 10.5″ x 14.5″
Return Pump Section: 5″ x 14.5″
Total Water Volume: 31 gallons
Refugium Water Level: 8″ to 11.5″ adjustable
Skimmer Water Level: 7″ to 9.5″ adjustable
Drain Input Fittings: 1″ (x3) – 2 main, 1 configurable
Filter Sock: 4″ (x2)

The Triton series is designed to work with the Triton method which is becoming increasingly popular as it does not require water changes, which no one enjoys. One of the main requirements for the Triton method is to have a refugium sized at roughly 10% of the display tank volume. The TRITON34 refugium will hold over 10 gallons when at the highest water level setting (11.5″) allowing it to support tanks up to 100-150 gallons. The V2 design incorporates a larger refugium and a larger skimmer section. We also added a filter sock holder on the main inputs for mechanical filtration to polish the water from time to time if needed. This feature allows you to move back to the more traditional filtration method with filter socks in the future. A third configurable 1″ input fitting is provided that can be placed in the skimmer section or the return area. Lastly, the V2 design comes with an additional 1/4″ quick connect input in the front refugium section for dosing that requires more turbulent flow. Some of the features of the TRITON34 are:

• Refugium clear polycarbonate lid

• Algae blocker

• Independent water level control in refugium and skimmer sections

• Two 4″ Filter Socks included

• Additional 1″ input that can be placed in skimmer or return area

• Cable/Hose organizers

• Media platform with foam filter block

• Laser engraved water level indicator

• Four position countersunk probe holder

• Quick connect 1/4″ hose input fittings for dosing and ATO inputs, one in refugium section and four in return section

• Aquamarine blue coloring accents, solid white bottom and smoke back and around refugium section to block light and prevent unwanted algae growth in other sections

TRITON34 WATER|

The TRITON34 has 3 main sections. Water enters the sump through the dual input fittings. A filter sock holder allows for placing 4″ filter socks under each input. Water then flows through the large refugium section that has a lid to prevent noise and water evaporation. Water then flows through the overflow teeth in the adjustable wall into Section 2.

Section 2 is typically where the protein skimmer is located. Water purposely exits Section 2 by flowing under the aquamarine wall to allow proteins to remain at the surface maximizing the potential for the protein skimmer to extract from the system. The water then flows through the media platform and foam filter block into Section 3. The media platform can be used to allow for several different filtration methods (bag of carbon, bio balls, bio media, rubble rock, etc.).

Section 3 is the return section where the return pump will sit, pumping water back to the display tank.

Key Features

1. Filter sock holder

2. Two 1″ input fittings

3. Quick connect hose inputs for dosing and ATO (x1 in refugium, x4 in return)

4. Refugium clear polycarbonate lid

5. Cutout to allow mounting of refugium light

6. Cable/Hose organizer (x2)

7. Four position probe holder with countersunk holes

8. Additional 1″ input, can be placed in skimmer or return area

9. Laser engraved water level indicator

10. Adjustable water level in skimmer section

11. Media platform with foam filter block

12. Adjustable water level in refugium section

13. Algae blocker

1″ Inputs

The TRITON34 comes with two main 1″ input fittings with extension pipes in the refugium section. A filter sock holder is installed so that 4″ filter socks (included) can be used for mechanical filtration if desired.  These fittings allow for a 1″ PVC pipe to be glued into the fitting. If using sand or mud in the refugium, we recommend putting 1″ PVC elbows at the bottom of the extension pipes to avoid water flow from stirring up the sand or mud.

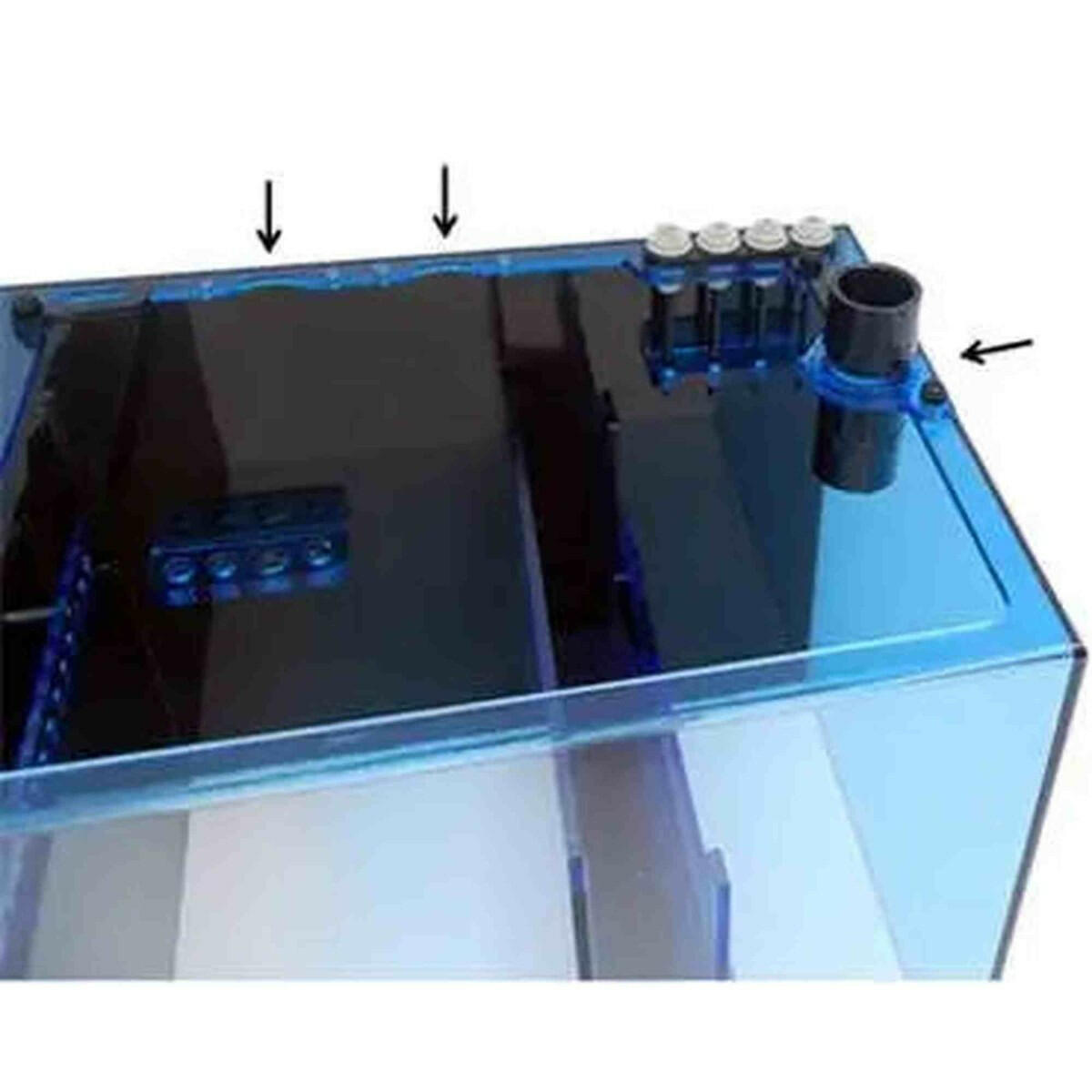

An additional 1″ input is installed on a bracket that can be placed in the skimmer or return area. Possible install areas are shown by the arrows in the picture. Two locations are available in the skimmer area to allow spacing for fitting different protein skimmers. This additional input is typically used for the siphon style overflow design for the emergency drain. The emergency drain is typically dry and will only have water flow through it when the other two main drains have issues. Therefore, we recommend to not have an extension pipe so the noise made when water flows through this input can be heard. Another common use for the additional input is in the return area for the return pump plumbing.

Refugium Lid

A lid is provided to cover the refugium section. This lid is made of clear polycarbonate so that it will not warp over time due to humidity and temperature. This lid helps to prevent excessive water evaporation and reduce noise. The inside of the top bracing has a lip for the lid to recess into giving it a nice look. There is also a notch cutout in the top bracing in the back to allow multiple lights to be mounted.

Cable/Hose Organizer

Hose and/or cable holders are provided to help keep the power cables, probe wires, hoses, etc. nice and organized. Two are provided, one located above the probe holder and the other located in the return section.

Probe Holder

Probe holder can hold up to 4 probes. One of the holes is larger to accommodate larger probes. The holes are countersunk to prevent probes from falling through. O-rings are provided to wrap around the probes to provide added support if required.

Quick Connect Hose Input Fittings

Quick connect inputs are located in the top brace to connect 1/4″ tubing from dosing or ATO. Four are located in the return section and one is located in the refugium section behind the drain input fittings. The quick connect input fittings all have extension pipes and the four in the return also included a support bracket mounted on the back wall where the extension pipe mount into. This puts the hose outputs at the appropriate height to view the drops entering the system, ensuring hoses are not clogged and minimizing water splashing/noise.

Laser Engraved Water Level Indicator

Subtle water level height indicator is laser engraved on the inside wall to help when setting the adjustable water level to to the desired water height based on protein skimmer requirements.

Media Platform

In the 2″ area between the skimmer section and return section, there is a media platform with a foam filter block on top. This can be used to hold the foam filter block that is provided or bags of other media.

Algae Blocker

Some types of algae will float at the top of the water surface. The algae blocker will stop floating algae from getting clogged up at the overflow teeth of the refugium wall. The blocker will force the water to flow under the blocker while leaving the algae floating at the surface.

Adjustable Water Level

Water level in the skimmer section is adjustable from 7″ to 9.5″ to accommodate for the water height requirements for different protein skimmers. Simply move the adjustable wall to the desired height location (use the laser engraved water level indicator to assist) and then tighten the two bolts to hold in place.

Water level in the refugium section is also adjustable (from 8″ to 11.5″). The TRITON method requires higher flow rate through the sump than most other methods. Depending on your flow settings through the refugium and skimmer sections, water noise and splashing may be an issue. We made both levels configurable so you can fine tune based on individual needs.

The Trigger Systems Aquamarine Triton Reef Sump 34-v2 is a state-of-the-art sump designed for dedicated aquarists who seek optimal efficiency and advanced filtration for their reef tanks. This high-performing sump system is specifically engineered to meet the stringent requirements of modern reef keeping, offering advanced features that set it apart from traditional sumps. Its aquamarine color not only adds visual appeal but also signifies its superior design and functionality. Here, we delve into why the Trigger Systems Aquamarine Triton Reef Sump 34-v2 should be your go-to choice for maintaining a healthy reef aquarium.

First, let's talk about its dimensions and build quality. The 34-v2 model measures 34 x 15 x 15 inches, making it compact enough to fit under most standard reef tanks but spacious enough to accommodate various types of filtering media and equipment. Made from high-quality acrylic, this sump is designed for durability and long-lasting performance. The crystal-clear walls allow for easy monitoring of all internal processes, so you can ensure everything is running smoothly.

The unique flow dynamics of the Trigger Systems Aquamarine Triton Reef Sump 34-v2 are specifically engineered to enhance water quality and maintain a stable environment. The Triton method, which this sump is optimized for, emphasizes efficient water movement and the use of macroalgae to balance nutrient levels naturally. By supporting this process, the sump ensures that your reef habitat can thrive without excessive intervention.

Key features also include a comprehensive filtration system. The sump comes with filter socks to trap large debris before the water passes through finer filtration stages. This multi-layered approach enhances water clarity and ensures the longevity of downstream equipment. Additionally, the large refugium section can house a substantial amount of macroalgae or live rock, providing natural filtration and habitat for beneficial organisms. The built-in skimmer chamber is designed to accommodate a variety of protein skimmers, further ensuring that your tank remains free of harmful organic compounds.

Ease of maintenance is another standout aspect of the Trigger Systems Aquamarine Triton Reef Sump 34-v2. It features a modular design, allowing for different sections to be accessed and cleaned independently. This means you won't have to disassemble the entire setup for routine maintenance, thus saving you time and effort. The integrated dosing ports also allow for straightforward addition of essential supplements, ensuring your tank remains balanced and your corals stay vibrant.

The Trigger Systems Aquamarine Triton Reef Sump 34-v2 isn't just about functionality; it also adds an aesthetic appeal to your aquarium setup. The sleek, modern design complements any tank, and the transparent sections provide an impressive view of the sump's inner workings. Whether you're an experienced aquarist or just starting, this sump offers the reliability and ease of use you need to succeed.

In conclusion, the Trigger Systems Aquamarine Triton Reef Sump 34-v2 is an exceptional piece of equipment that combines efficiency, durability, and ease of use. Its advanced features ensure optimal water quality and stable conditions for your reef tank, making it a worthwhile investment for any serious reef keeper. If you want a sump that delivers on performance and aesthetics, look no further than the Trigger Systems Aquamarine Triton Reef Sump 34-v2.
