AutoAqua Smart ATO RO

AutoAqua Smart ATO RO

Overview

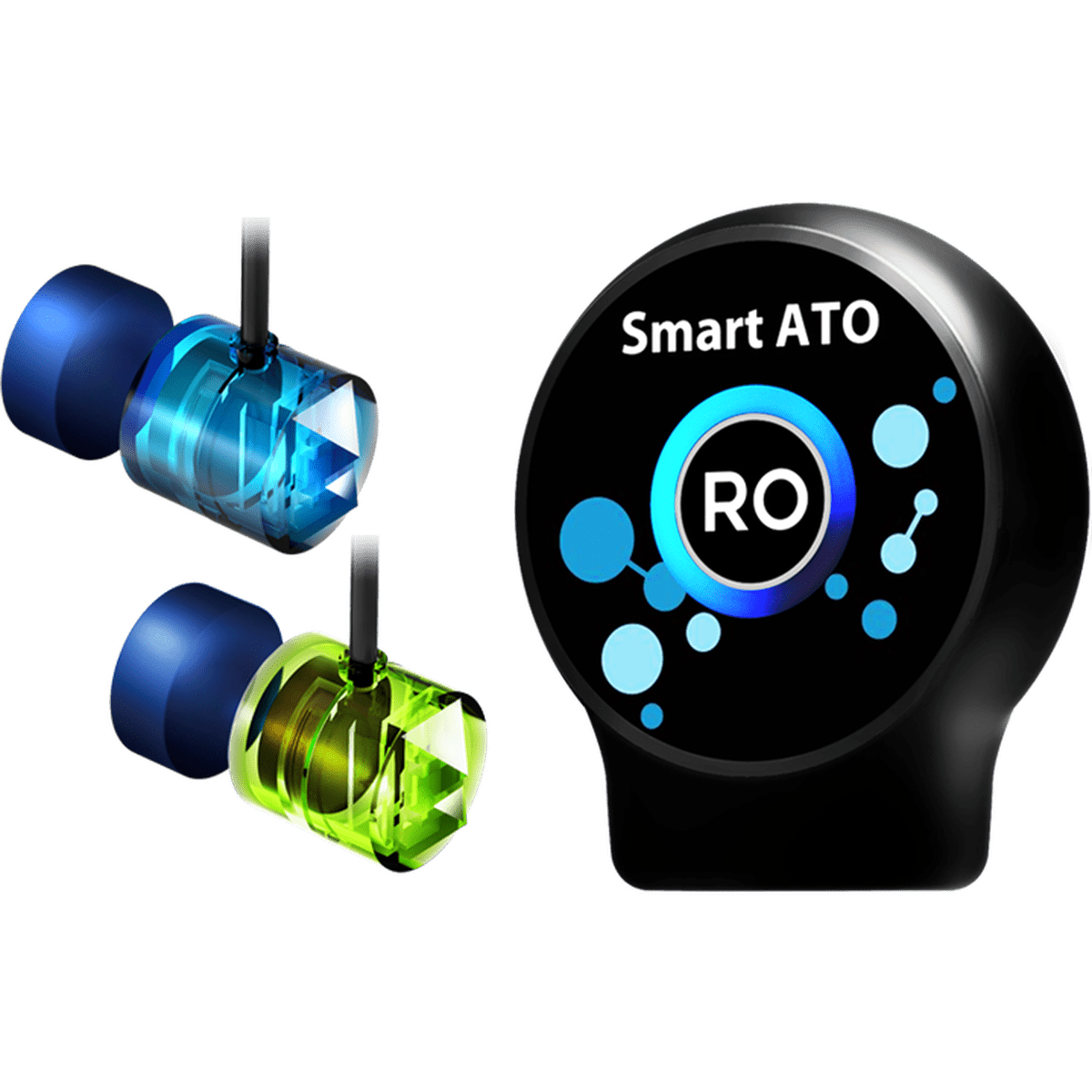

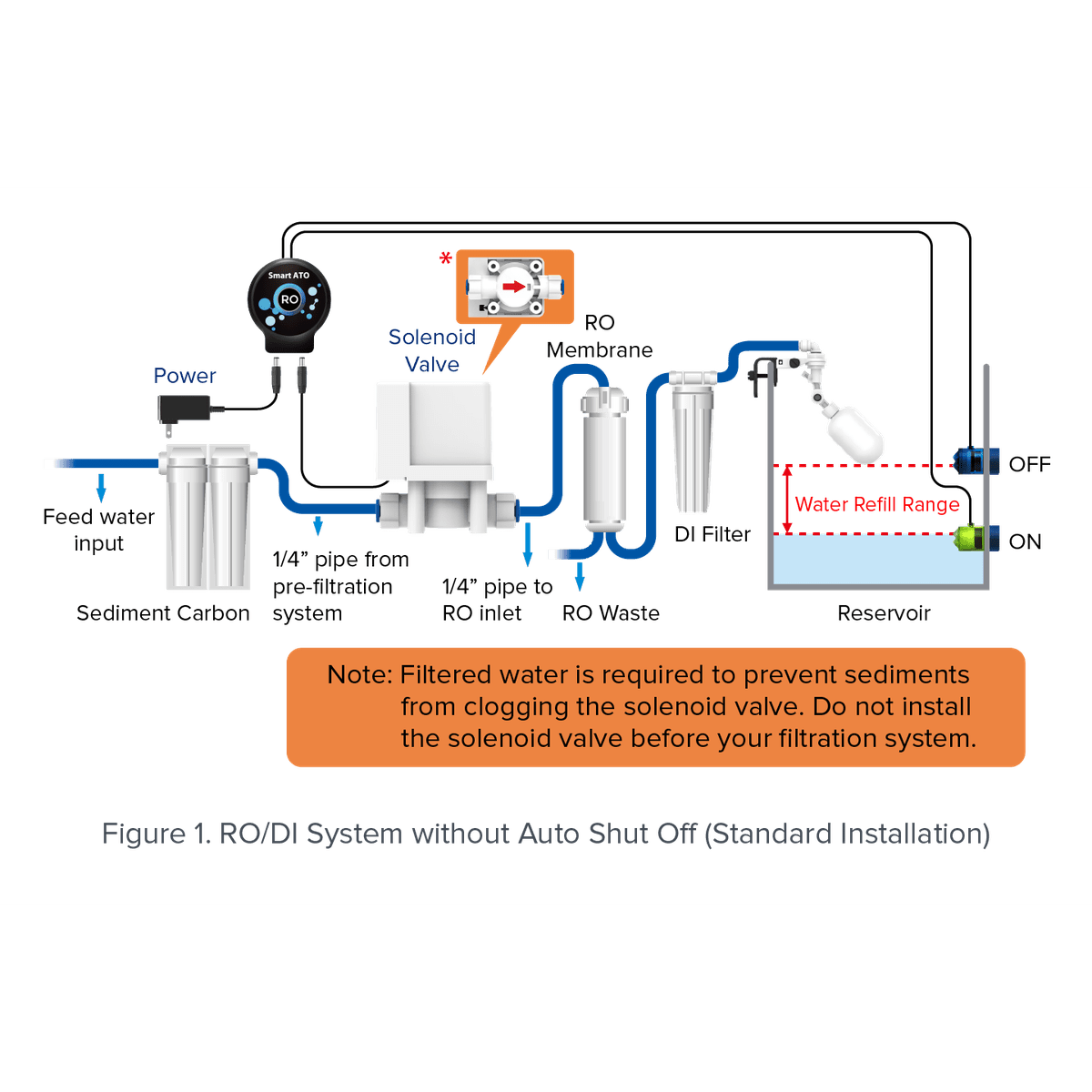

The AutoAqua Smart ATO RO is an automatic top-off controller designed specifically for filling your RO/RODI reservoir directly from an RO system—automating the refill of your storage container rather than the aquarium. Using dual optical sensors and a float valve backup, it refills your reservoir when the water level drops, then automatically shuts off the RO/DI system when it reaches the top, preventing floods and reducing TDS creep.

This system ensures you always have a full supply of purified RO/DI water for auto top-off systems or water changes while extending the life of your DI resin by minimizing short, frequent RO cycles.

Product Specifications

• Application: Automatic refill of RO/RODI storage reservoir

• Control Type: Smart controller with dual optical sensors and float valve backup

• Included Components:

  • Smart ATO RO controller

  • DC solenoid valve for RO line

  • Universal power adapter

  • Float valve kit

  • 1/4" RO tubing (approx. 9.8 ft / 300 cm)

• Power:

  • Input: 100–240 VAC, 50–60 Hz

  • Output: 12 VDC (approx. 4.5 W) to controller/solenoid

• Solenoid Valve:

  • Power: ~6 W @ 12 VDC

  • Connection: 1/4" RO tubing

  • Pressure Range: 0.02–0.7 MPa

• Max Mounting Thickness:

  • Sensor magnet: up to ~1/2" (12.7 mm) glass/acrylic

  • Universal holder: up to ~3/4" (19 mm)

Key Features

• Automates filling of RO/RODI storage containers from your RO system

• Dual optical sensors with float valve backup for triple-layer flood protection

• Prevents TDS creep, saving DI resin and improving water quality

• Magnetic-mounted sensors fit a wide range of containers

• Water-resistant connectors for increased reliability in humid environments

• Complete kit includes everything needed for quick installation and operation
