AutoAqua Smart ATO Lifter

Smart ATO Lifter Controller – Model SC-272

Overview

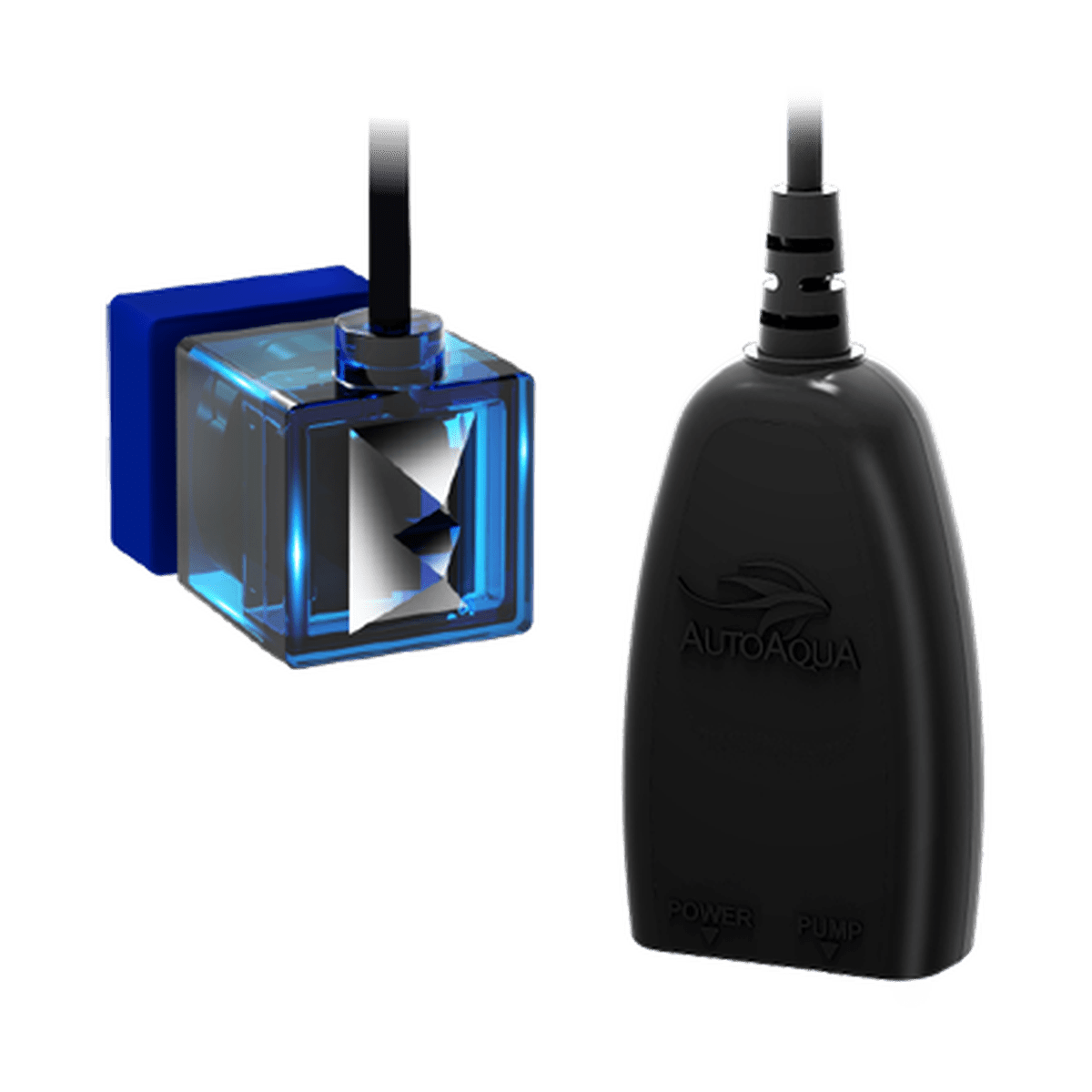

The Smart ATO Lifter Controller (SC-272) is a compact and efficient automatic top-off (ATO) sensor and controller designed to maintain stable water levels in aquariums. Using an advanced magnet-mounted optical sensor, it provides precise water level monitoring and easy installation.

Key Features

✔ Mounts to Most Clear, Tinted, or Painted Surfaces – Versatile installation on different types of aquarium panels.
✔ Compact Optical Sensor – Ensures accurate water level detection while taking up minimal space.
✔ Easy Magnetic Attachment – Dry-side magnet allows secure mounting on glass or acrylic.
✔ Supports Thick Panels – Works with aquarium panels up to 1/2 inch (12.7 mm) thick.
✔ Flexible Cable Length – 4-ft (120 cm) cable allows versatile placement between the sensor and controller.

Technical Specifications

• Sensor Size (L x W x T): 0.78" x 0.78" x 0.98" (20mm x 20mm x 25mm)
• Dry Side Magnet Size (L x W x T): 0.78" x 0.78" x 0.31" (20mm x 20mm x 8mm)
• Max Mounting Thickness: 1/2 inch (12.7 mm)
• Cable Length (Sensor to Controller): 120 cm (4 ft)

Recommended Applications

🔹 Perfect for Automatic Top-Off (ATO) Systems – Helps maintain consistent water levels in marine and freshwater tanks.
🔹 Ideal for Sumps and Display Tanks – Can be installed in aquarium sumps, AIO systems, or directly in display tanks.
🔹 Works with Various Reservoir Types – Compatible with ATO reservoirs or direct RO/DI water feeds.
