Aqua Ultraviolet – VIPER 400W Lamp Kit for 3" Plastic Unit

Aqua Ultraviolet – VIPER 400W Lamp Kit for 3" Plastic Unit

Overview

Factory lamp kit for the Aqua Ultraviolet VIPER 400W (3" plastic) sterilizer. Restores peak germicidal performance in high-flow, large-system applications using a single high-output, low-pressure (amalgam) UV-C lamp.

Key Features

• Genuine Aqua UV 400-watt HO UV-C lamp for VIPER 3" plastic housings

• Matched components to maintain proper fit, sealing, and UV dose

• Fast, service-friendly swap to keep downtime to a minimum

• Supports clear water and pathogen reduction in demanding, high-GPH systems

Compatibility

• For VIPER 400W UV sterilizers with the 3" plastic body

• Not for stainless units or other wattages (800W/1200W)

Specifications

• Lamp Power: 400 W (low-pressure UV-C, amalgam)

• Peak Wavelength: ~254 nm germicidal

• Housing Fit: 3" plastic VIPER assembly

• Service Life: Replace ~9–12 months of continuous use (or per meter/dose targets)

What’s Included

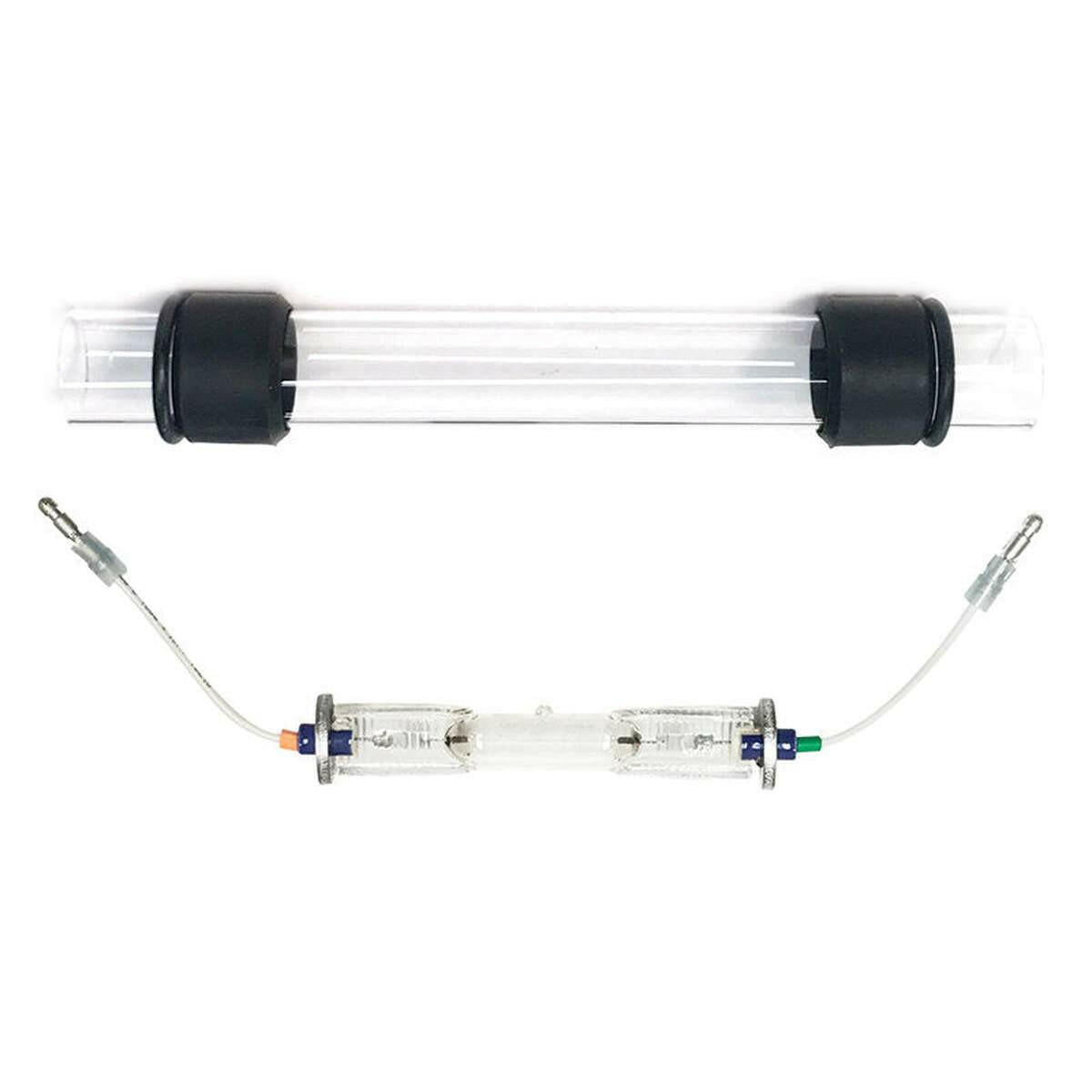

• (1) 400W UV-C lamp (VIPER, 3" plastic fit)

• (1) Set of end seals/O-rings matched to the lamp end assembly

• (1) Quartz end cap/insulator or hardware as required for this kit (model dependent)

• Quick install sheet

Contents may vary slightly by production run; all parts are OEM and matched for the 3" plastic VIPER 400W.

Installation & Safety Notes

1. Power OFF and lock out the circuit; allow the unit to cool.

2. Isolate and depressurize plumbing; drain the UV chamber.

3. Open end assembly, remove old lamp and seals; do not touch new lamp glass with bare hands.

4. Inspect/clean the quartz sleeve; replace if etched or cracked.

5. Install new seals lightly lubricated with silicone-safe grease; seat squarely.

6. Reassemble hand-tight, then snug—do not overtighten.

7. Restore flow, then power ON and verify operation; check for leaks after first run.
