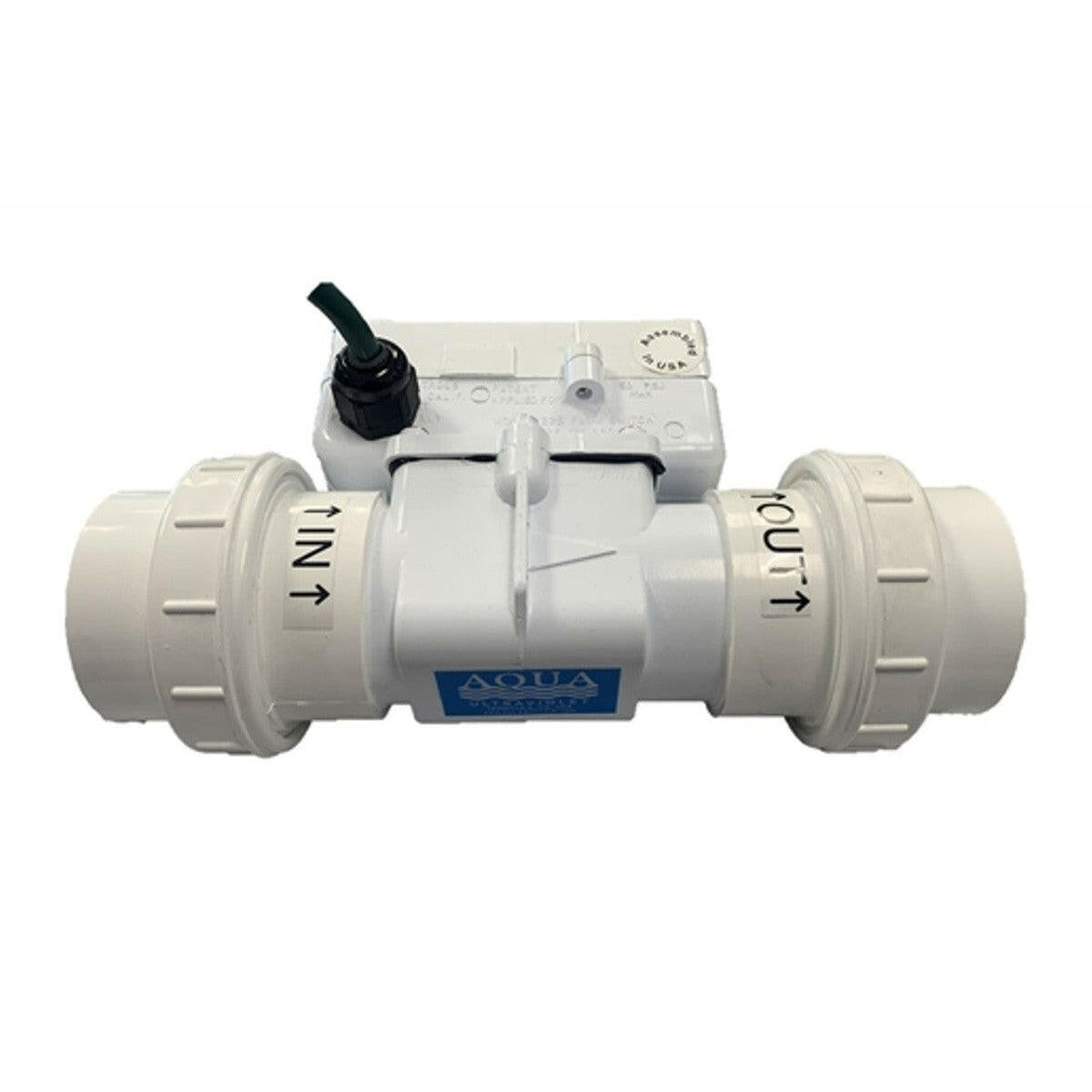

Aqua Ultraviolet – Flow Switch (GRID) for Classic & SL Series — Complete with 2" Unions & Cords

Aqua Ultraviolet – Flow Switch (GRID) for Classic & SL Series — Complete with 2" Unions & Cords

Overview

Add automatic protection to your UV system. This in-line flow switch (GRID) interlocks power to the UV so the lamp only runs when water is moving—helping prevent overheated housings, scorched sleeves, and premature lamp failure.

Key Features

• Auto safety interlock: cuts/enables UV power based on actual water flow

• Plug-and-play kit: includes 2" unions and pre-wired cords

• Reduces risk of sleeve discoloration and O-ring damage during dry-run events

• Works with Classic and SL series UV sterilizers

• Service-friendly unions for quick removal and cleaning

Compatibility

• Aqua Ultraviolet Classic and SL UV sterilizers on 2" PVC plumbing

• Freshwater or saltwater systems (non-submersible installation)

Specifications

• Type: In-line flow-sensing power interlock (GRID style)

• Plumbing: 2" slip unions (in/out)

• Use: Horizontal or vertical (follow flow arrow; avoid air traps)

• Electrical: Pre-wired cord set for simple UV power interlock (120V systems)

• Housing: Rigid PVC/engineered plastics for wet-location plumbing (external only)

What’s Included

• (1) Flow Switch (GRID assembly)

• (2) 2" slip unions with O-rings

• Pre-wired power/control cords

• Quick start/installation guide

Installation Notes

1. Install after the pump and mechanical filtration; align with the flow arrow.

2. Solvent-weld the 2" unions to your PVC; allow full cure before pressurizing.

3. Mount the switch so the sensing chamber stays flooded (no trapped air).

4. Connect the cords per the diagram to interlock UV power through the flow switch.

5. Test by starting/stopping the pump—UV should turn off when flow stops.

6. Never submerge the electrical components; keep cords and connections dry/secured.
