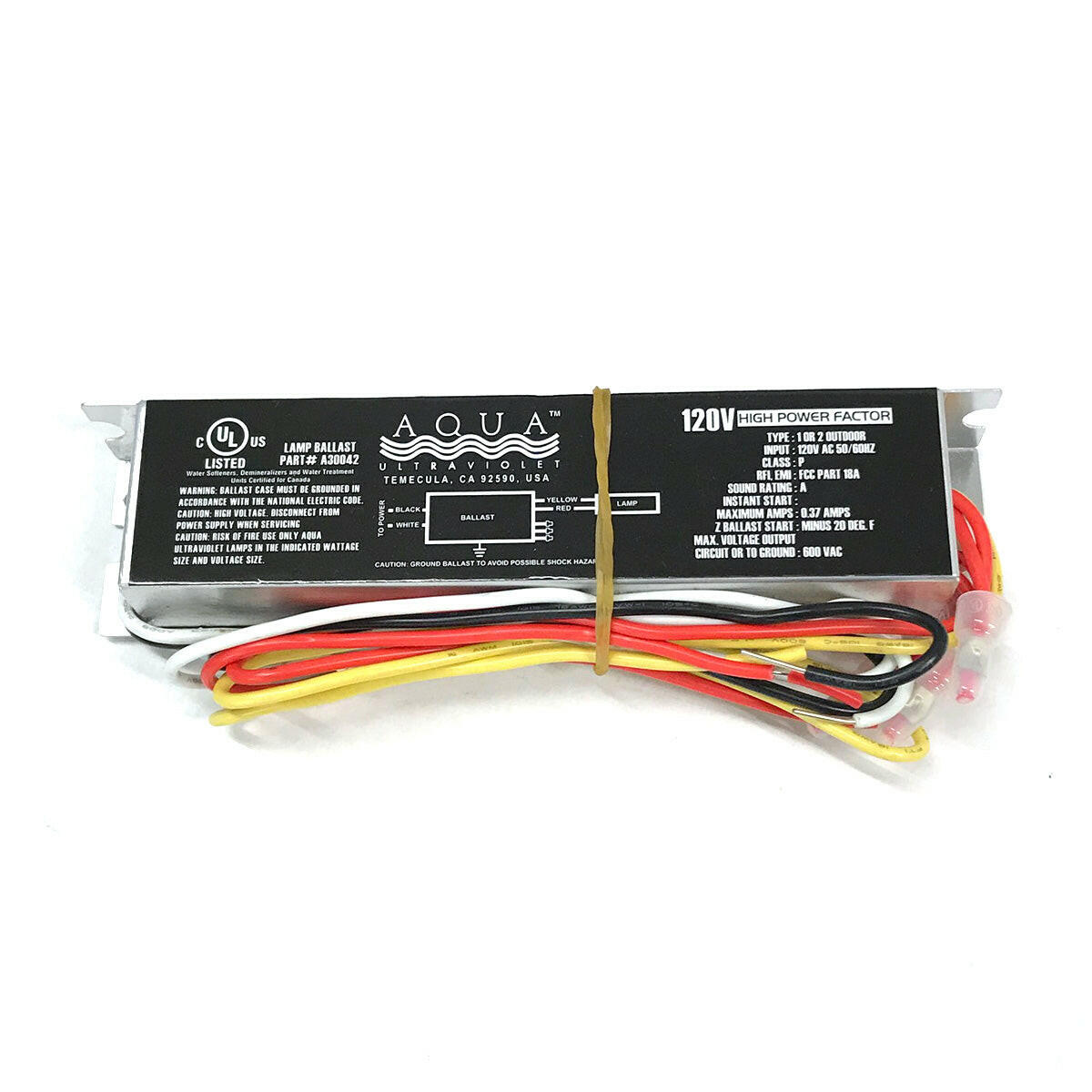

Aqua Ultraviolet – 80 Watt Replacement Raw Transformer / Ballast

Aqua Ultraviolet – 80 Watt Replacement Raw Transformer / Ballast

Overview

OEM raw transformer/ballast for Aqua Ultraviolet 80W UV sterilizers. Replaces a failed or aging power component to restore reliable lamp ignition and correct operating current.

Key Features

• Genuine replacement power component for 80-watt Aqua UV lamps

• Provides proper start and run current for stable UV output

• “Raw” (unhoused) part—ideal for service benches and in-house repairs

• Compatible with wiper and non-wiper models

Compatibility

• Aqua Ultraviolet Classic 80W UV sterilizers (all port sizes)

• Not for other wattages (8W/15W/25W/40W/57W/114W/160W/etc.)

Specifications

• Type: Low-pressure UV-C lamp transformer/ballast (80W)

• Input: 120V AC, 60Hz (typical)

• Output: Matched to Aqua UV 80W low-pressure UV-C lamp

• Form Factor: Raw component (no outer housing)

• Leads: Pigtail wiring for line/neutral/ground and lamp connections

What’s Included

• (1) 80W raw transformer/ballast

Installation & Safety Notes

1. Disconnect power and isolate plumbing before service.

2. Mount in a dry, ventilated area—do not submerge or expose to spray.

3. Follow the factory wiring diagram; correctly terminate line/neutral/ground.

4. Use proper connectors/heat-shrink and strain-relief.

5. After installation, verify lamp strike and amperage; replace aged lamps/sleeve as needed.
