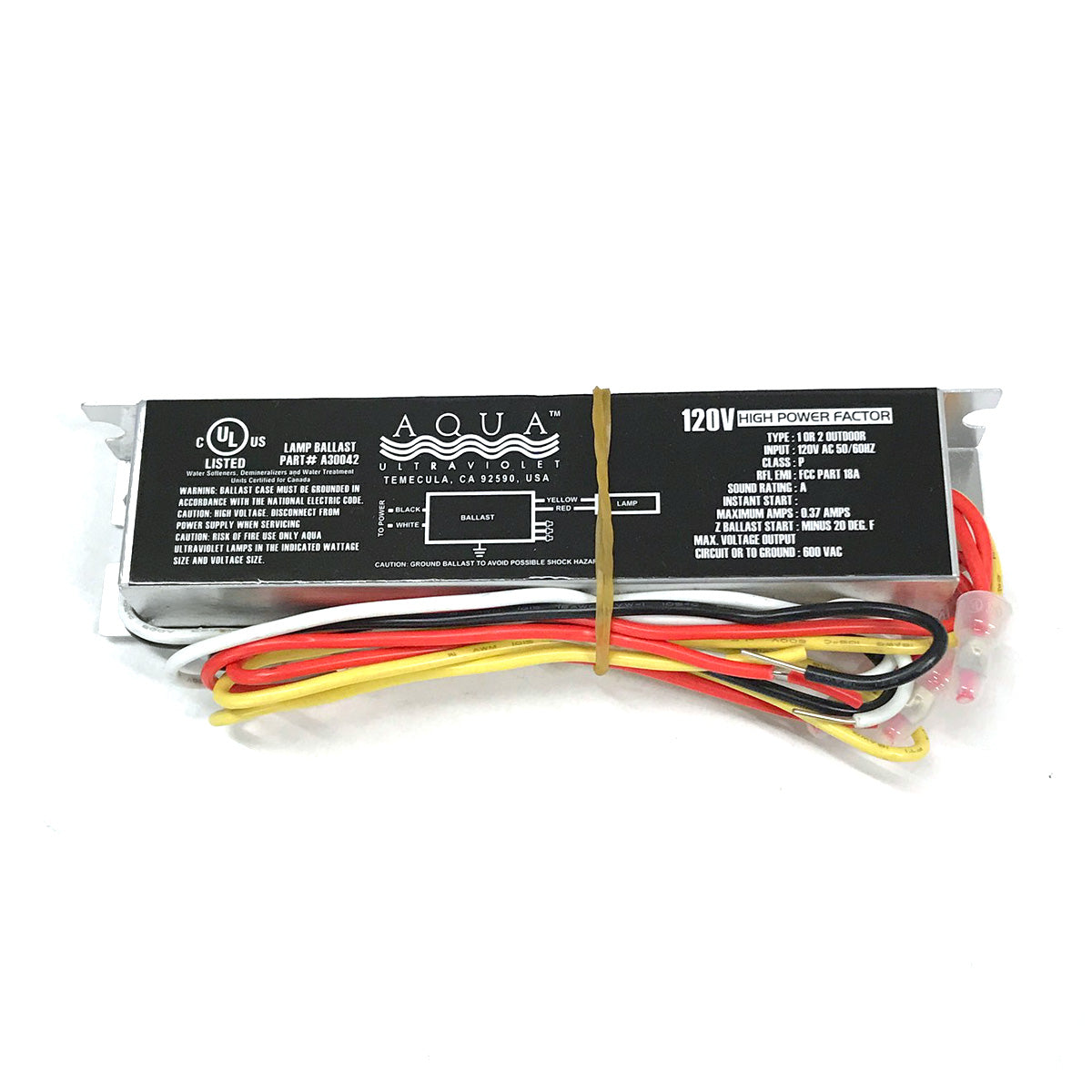

Aqua Ultraviolet – 40 Watt Replacement Raw Transformer / Ballast

Aqua Ultraviolet – 40 Watt Replacement Raw Transformer / Ballast

Overview

OEM replacement raw transformer/ballast for Aqua Ultraviolet 40W UV sterilizers. Restores proper lamp ignition and operating current when a power supply has failed or aged out.

Key Features

• Genuine replacement power component for 40-watt Aqua UV lamps

• Delivers correct start/operating current to maintain UV output

• “Raw” component—ideal for service techs and in-house repairs

• Compatible with wiper and non-wiper models

Compatibility

• Aqua Ultraviolet Classic 40W UV sterilizers (all port sizes)

• Not for other wattages (15W/25W/57W/80W/etc.)

Specifications

• Type: Low-pressure UV-C lamp transformer/ballast (40W)

• Input: 120V AC, 60Hz (typical)

• Output: Matched to Aqua UV 40W low-pressure UV-C lamp

• Form factor: Raw component (no housing)

• Leads: Pigtail wiring (line/neutral/ground and lamp leads)

What’s Included

• (1) 40W raw transformer/ballast

Installation & Safety Notes

1. Disconnect power and isolate the unit before service.

2. Mount in a dry, ventilated area—do not submerge or expose to spray.

3. Follow the factory wiring diagram; match line/neutral/ground correctly.

4. Use proper connectors/heat-shrink; strain-relieve all leads.

5. After replacement, verify lamp strike and amperage; replace lamps/sleeve as needed.
