Available Options

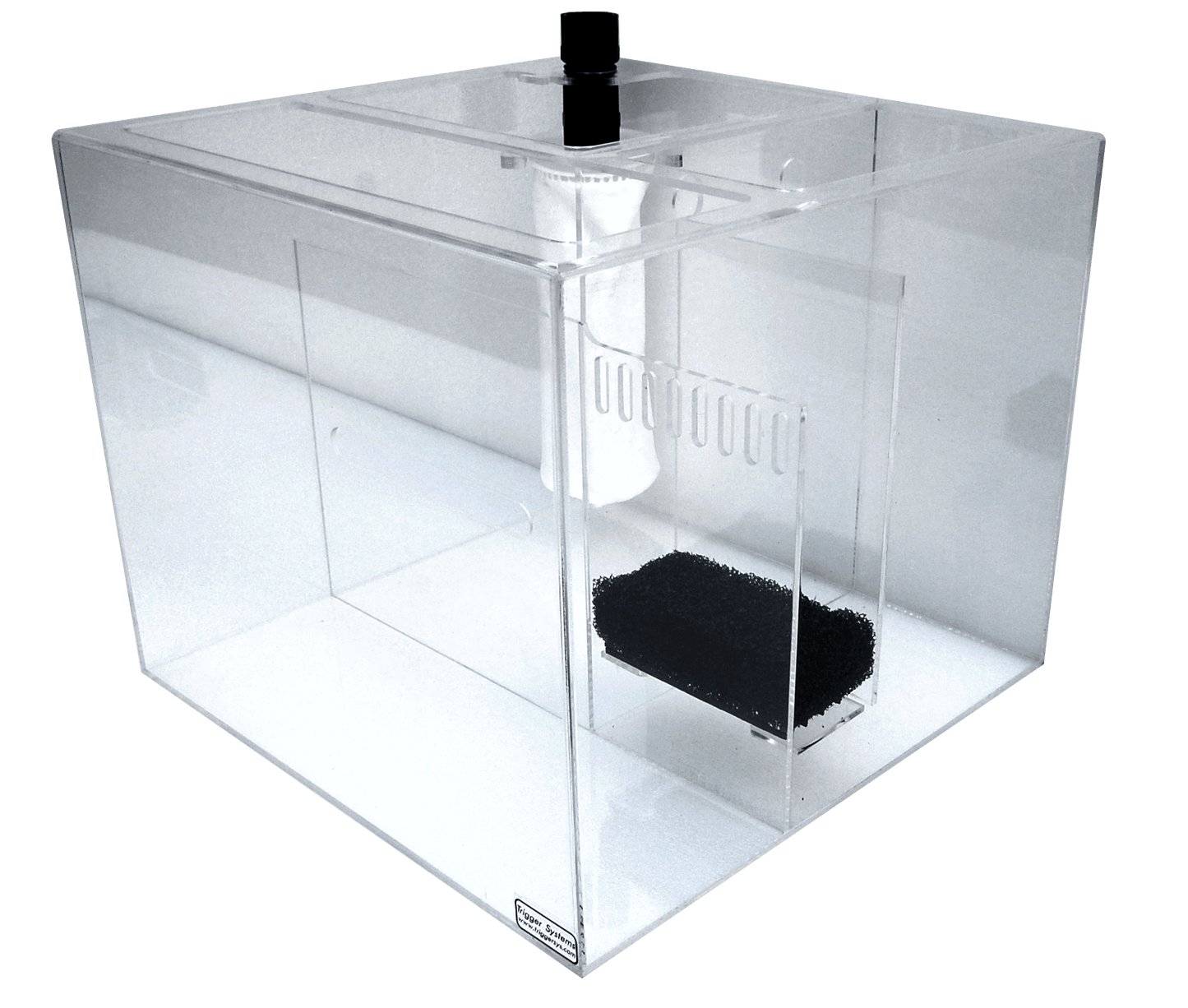

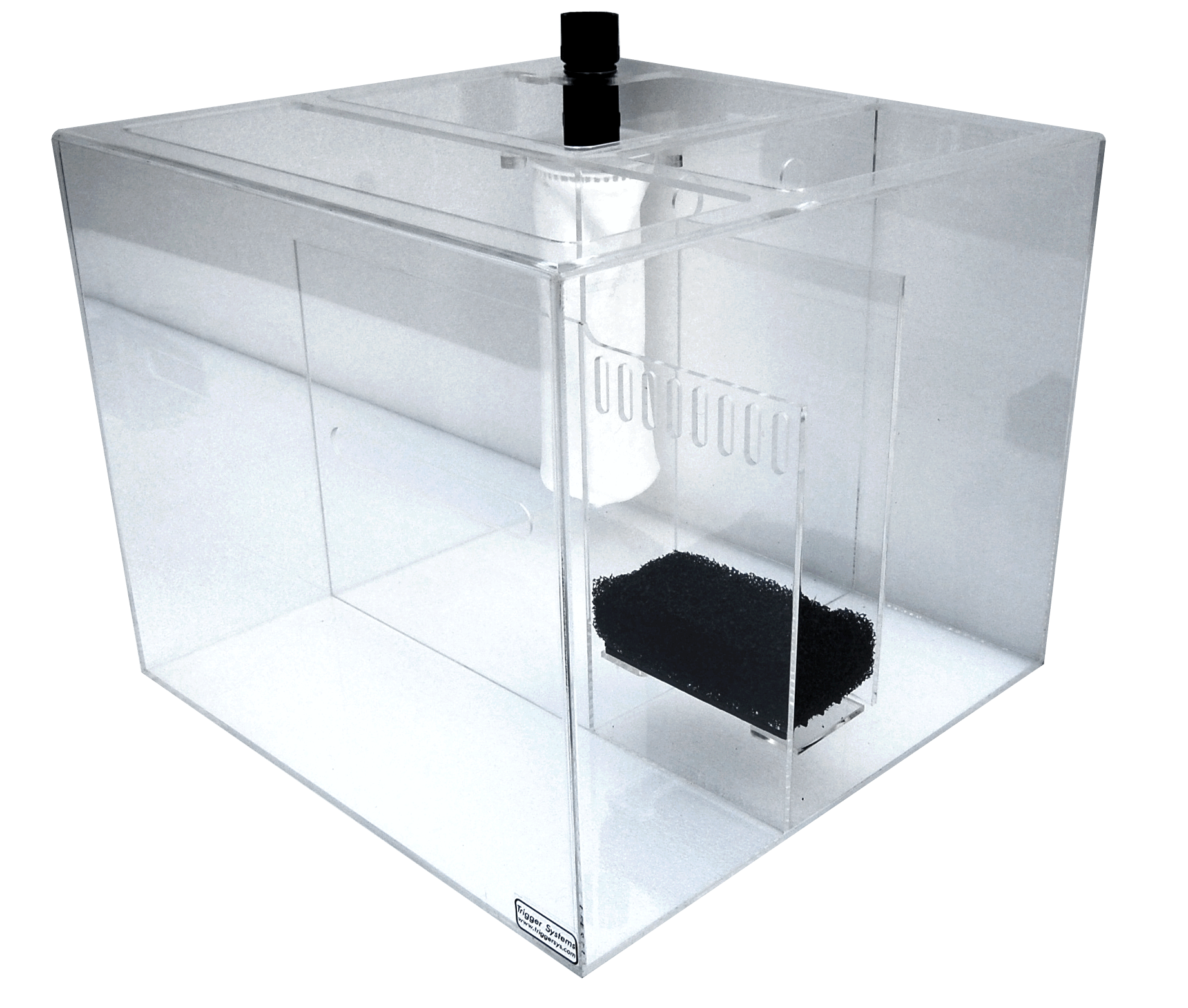

Size: 18 × 18 in (45.72 × 45.72 cm)

Trigger Systems specializes in aquarium sump manufacturing and are based here in the USA (Dallas, TX). All Trigger sumps come with a full top support brace which is made of a solid piece of material to prevent bowing over time from the humidity and water pressure. They also round the corners instead of squaring them which exponentially increases the strength of the corners. The CRYSTAL series sumps are reasonably priced and have the same design and quality as Trigger Systems' RUBY series sumps but with all clear material. The CRYS18C can be used as a berlin style sump or a refugium style sump. Some features of the CRYS18C sump are: Locking filter sock holder Solid top support brace to prevent bowing Foam filter block Protein skimmer section Refugium section Section Details & Water Flow Path The CRYS18C has 3 main sections. Section 1 of the CUBE design is where the water from the main tank enters through the filter sock. This is the section where the protein skimmer typically sits. Water flows from this section through a slit in the baffle into Section 2. Section 2 is typically used as the refugium section. Having the refugium facing the front is a nice feature allowing easy maintenance and visibility of the refugium. Water flows to the right and then towards the back over the baffle through the overflow teeth. The wall with the overflow teeth moves up and down to set the water level for Section 1 and Section 2. The water then goes through a foam block and under a baffle into Section 3. Section 3 is the return section where the return pump will sit, pumping water back to the display tank. Draw String Tabs Tabs are located on the top support brace in front of the 1” bulkhead fittings which are included. The purpose of these tabs is to provide a location for tying off 7” diameter filter socks that have draw strings. Locking Filter Sock Holder Filter socks snap and lock into the filter sock holders to secure the filter sock from falling out when it becomes clogged and needs to be cleaned or replaced. The 4” filter socks are 100 micron rating. Specifications Dimensions: 18″ long x 18″ wide x 15″ high Drain/Skimmer Section: 10.875″ x 11″ Front/Refugium Section: 17.5″ x 6.5″ Return Pump Section: 6.4375″ x 11″ Total Water Volume: 20 gallons Skimmer Water Level: 9.5″ fixed Drain Input Fitting: 1″ (x1) Filter Sock: 4″ (x1)

SKU: TSY-816389

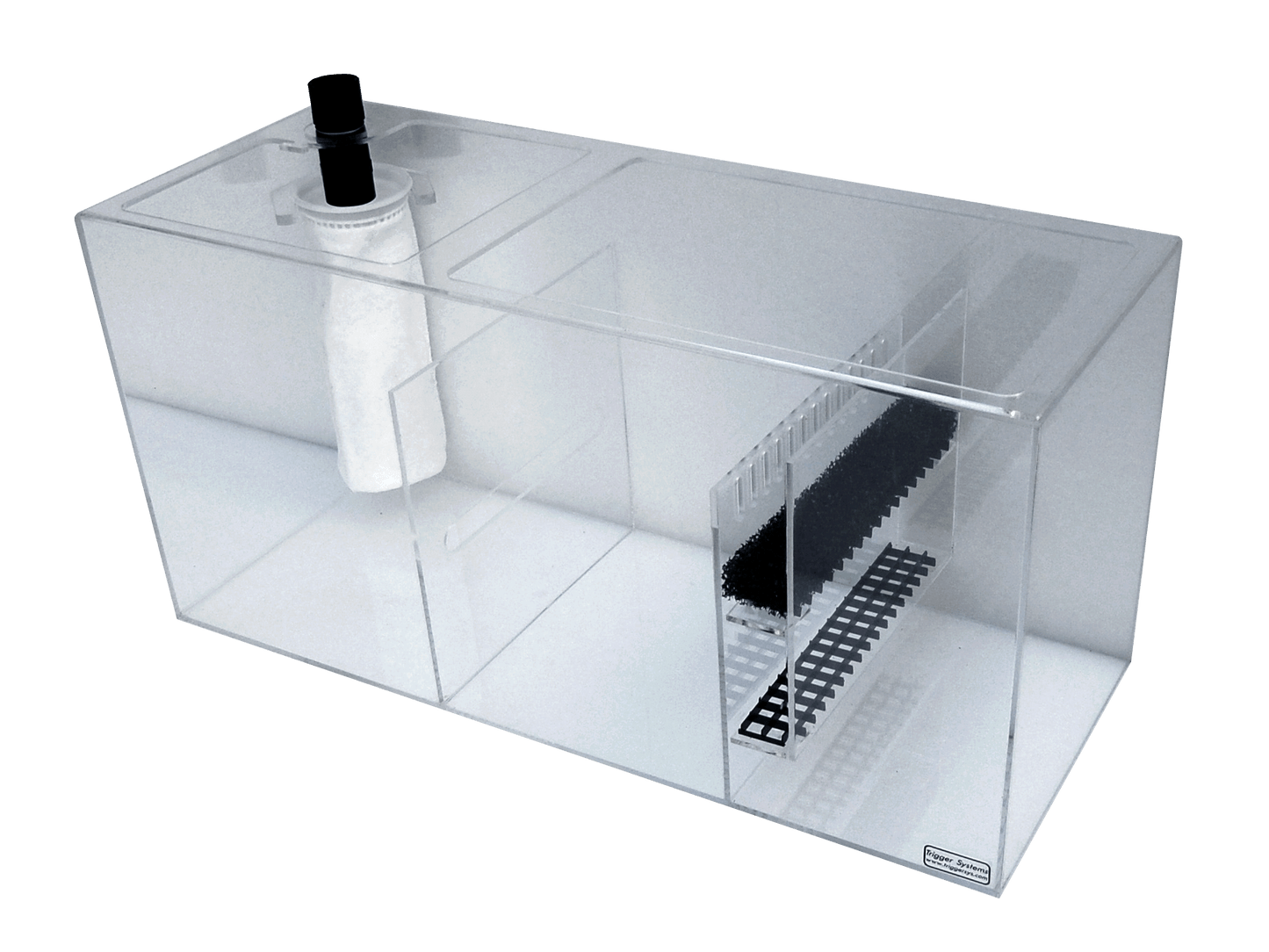

Size: 30 × 12 in (76.20 × 30.48 cm)

Trigger Systems specializes in aquarium sump manufacturing and are based here in the USA (Dallas, TX). All Trigger sumps come with a full top support brace which is made of a solid piece of material to prevent bowing over time from the humidity and water pressure. They also round the corners instead of squaring them which exponentially increases the strength of the corners. The CRYSTAL series sumps are reasonably priced and have the same design and quality as Trigger Systems' RUBY series sumps but with all clear material. The CRYS30S can be used as a berlin style sump or a refugium style sump. Some features of the CRYS30S sump are: Locking filter sock holder Dual platforms Solid top support brace to prevent bowing Foam filter block for top platform Protein skimmer section Refugium section Section Details & Water Flow Path The CRYS30S has 3 main sections. Water drains from the tank into section 1 through the 100 micron provided filter socks. Section 1 is typically where the protein skimmer sits. Water then flows through a slit in the first baffle into section 2. Section 2 is typically used as a refugium. If a refugium is not desired, then the protein skimmer or other equipment can be housed in section 2. The water then flows over the second baffle through 2 perforated platforms and under the third baffle into section 3. The top perforated platform holds the included foam block filter and the bottom platform is open to use for several different filtration methods (bag of carbon, bio balls, rubble rock, etc.). Section 3 is the return section where the return pump will sit, pumping water back to the display tank. Dual Media Platforms There are two platforms in the area before the return section. The top platform comes with a foam filter block and the bottom one is open to use for several different filtration methods (bag of carbon, bio balls, bio sponge, heater, rubble rock, etc.). Draw String Tabs Tabs are located on the top support brace in front of the 1” bulkhead fittings which are included. The purpose of these tabs is to provide a location for tying off 7” diameter filter socks that have draw strings. Locking Filter Sock Holder Filter socks snap and lock into the filter sock holders to secure the filter sock from falling out when it becomes clogged and needs to be cleaned or replaced. The 4” filter socks are 100 micron rating. Specifications Dimensions: 30″ long x 12″ wide x 15″ high Drain/Skimmer Section: 11″ x 11.5″ Center/Refugium Section: 9.5″ x 11.5″ Return Pump Section: 6″ x 11.5″ Total Water Volume: 21.3 gallons Skimmer Water Level: 9.5″ fixed Drain Input Fitting: 1″ (x1) Filter Sock: 4″ (x1)

SKU: TSY-816341

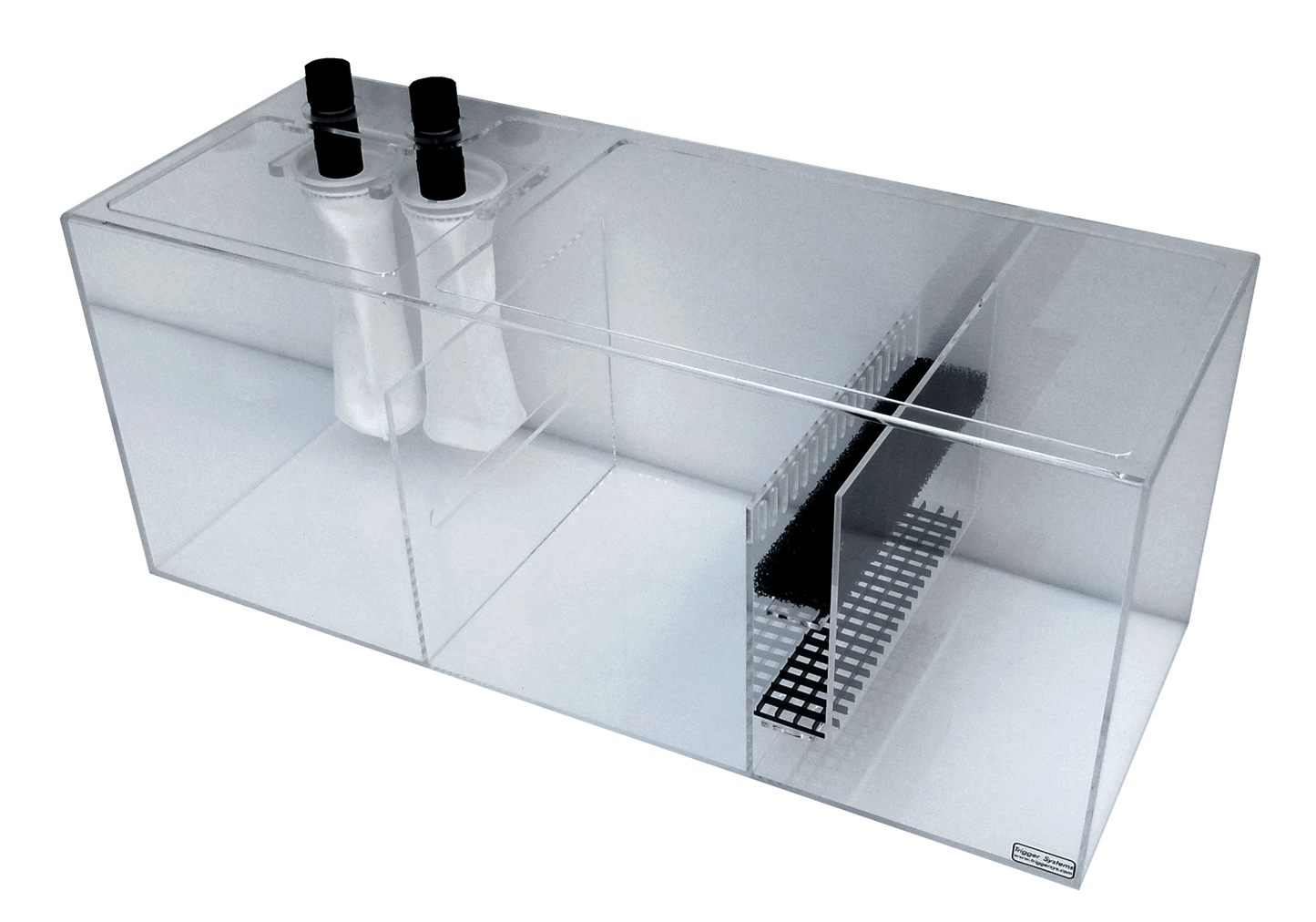

Size: 36 × 14 in (91.44 × 35.56 cm)

Trigger Systems specializes in aquarium sump manufacturing and are based here in the USA (Dallas, TX). All Trigger sumps come with a full top support brace which is made of a solid piece of material to prevent bowing over time from the humidity and water pressure. They also round the corners instead of squaring them which exponentially increases the strength of the corners. The CRYSTAL series sumps are reasonably priced and have the same design and quality as Trigger Systems' RUBY series sumps but with all clear material. The CRYS36S can be used as a berlin style sump or a refugium style sump. Some features of the CRYS36S sump are: Locking filter sock holder Dual platforms Solid top support brace to prevent bowing Foam filter block for top platform Protein skimmer section Refugium section Section Details & Water Flow Path The CRYS36S has 3 main sections. Water drains from the tank into section 1 through the 100 micron provided filter socks. Section 1 is typically where the protein skimmer sits. Water then flows through a slit in the first baffle into section 2. Section 2 is typically used as a refugium. If a refugium is not desired, then the protein skimmer or other equipment can be housed in section 2. The water then flows over the second baffle through 2 perforated platforms and under the third baffle into section 3. The top perforated platform holds the included foam block filter and the bottom platform is open to use for several different filtration methods (bag of carbon, bio balls, rubble rock, etc.). Section 3 is the return section where the return pump will sit, pumping water back to the display tank. Dual Media Platforms There are two platforms in the area before the return section. The top platform comes with a foam filter block and the bottom one is open to use for several different filtration methods (bag of carbon, bio balls, bio sponge, heater, rubble rock, etc.). Draw String Tabs Tabs are located on the top support brace in front of the 1” bulkhead fittings which are included. The purpose of these tabs is to provide a location for tying off 7” diameter filter socks that have draw strings. Locking Filter Sock Holder Filter socks snap and lock into the filter sock holders to secure the filter sock from falling out when it becomes clogged and needs to be cleaned or replaced. The 4” filter socks are 100 micron rating. Specifications Dimensions: 36″ long x 14″ wide x 15″ high Drain/Skimmer Section: 12″ x 13.5″ Center/Refugium Section: 12.25″ x 13.5″ Return Pump Section: 8″ x 13.5″ Total Water Volume: 30.6 gallons Skimmer Water Level: 9.5″ fixed Drain Input Fitting: 1″ (x2) Filter Sock: 4″ (x2)

SKU: TSY-816358
