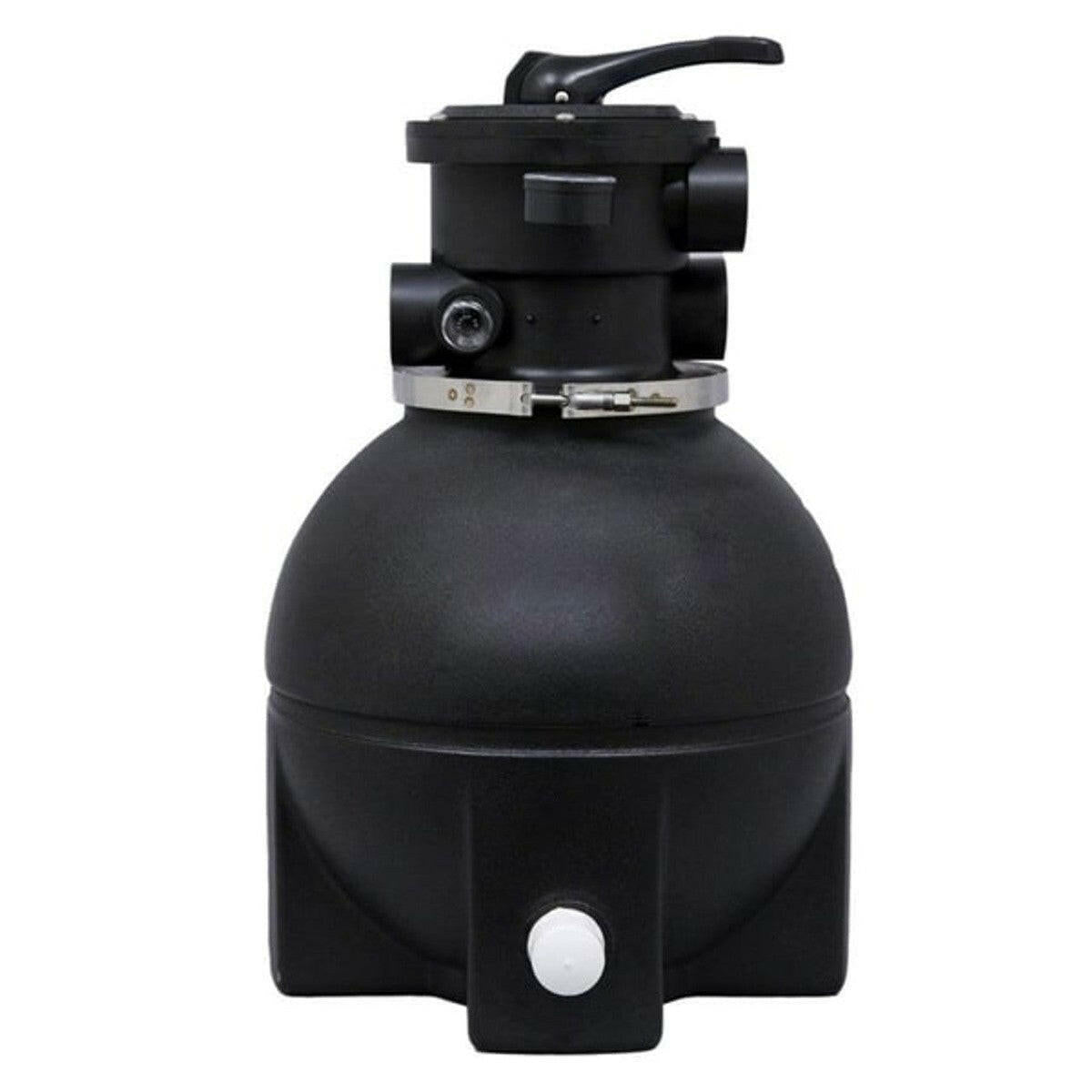

Aqua Ultraviolet – Ultima II 1,000 Filter with 1.5" Multi-Port Valve
Overview
Compact, pressurized bead filter for ponds and water features up to 1,000 gallons. The Ultima II 1,000 combines non-clogging bio-media with a powerful backwash to deliver clear, polished water with minimal maintenance—perfect for smaller koi ponds, quarantine systems, and fountains.
Key Features
-
Pressurized bead+bio filtration using high-surface-area Bio-Tubes
-
Cyclonic backwash lifts and purges debris fast—no messy media cleaning
-
1.5" multi-port valve with intuitive positions (Filter, Backwash, Rinse, Waste, Recirculate, Closed)
-
Low headloss design pairs well with external or submersible pumps
-
UV- and weather-resistant vessel for equipment pads or sheds (non-submersible)
Sizing & Flow Guidance
-
Pond capacity: up to 1,000 gal (heavy fish load or full sun may require upsizing)
-
Target pump flow: ~1,000–2,000 GPH through the 1.5" valve for best performance
-
Backwash when pressure rises ~5–8 psi above clean baseline
Specifications
-
Model: Ultima II 1,000
-
Valve: 1.5" side-mount multi-port
-
Operation: Pressurized, backwashable bead/bio-media
-
Ports: 1.5" slip at valve (adapt as needed)
-
Orientation: Outdoor-ready; install level and well-supported
-
Warranty: Manufacturer limited warranty on tank/valve (see terms)
What’s Included
-
Ultima II 1,000 filter vessel pre-loaded with media
-
1.5" multi-port valve (handle & sight glass)
-
Union/tailpiece set (model dependent)
-
Quick start/installation guide
Installation Notes
-
Set on a level, load-bearing pad near the pump and returns.
-
Plumb pump to valve IN, valve OUT to pond/returns; add a WASTE line for backwash.
-
Use unions and 1.5" PVC to minimize headloss; keep runs short/smooth.
-
On first start, run Rinse briefly, then switch to Filter.
-
Backwash when the gauge rises 5–8 psi or on a regular schedule for high-load systems.
