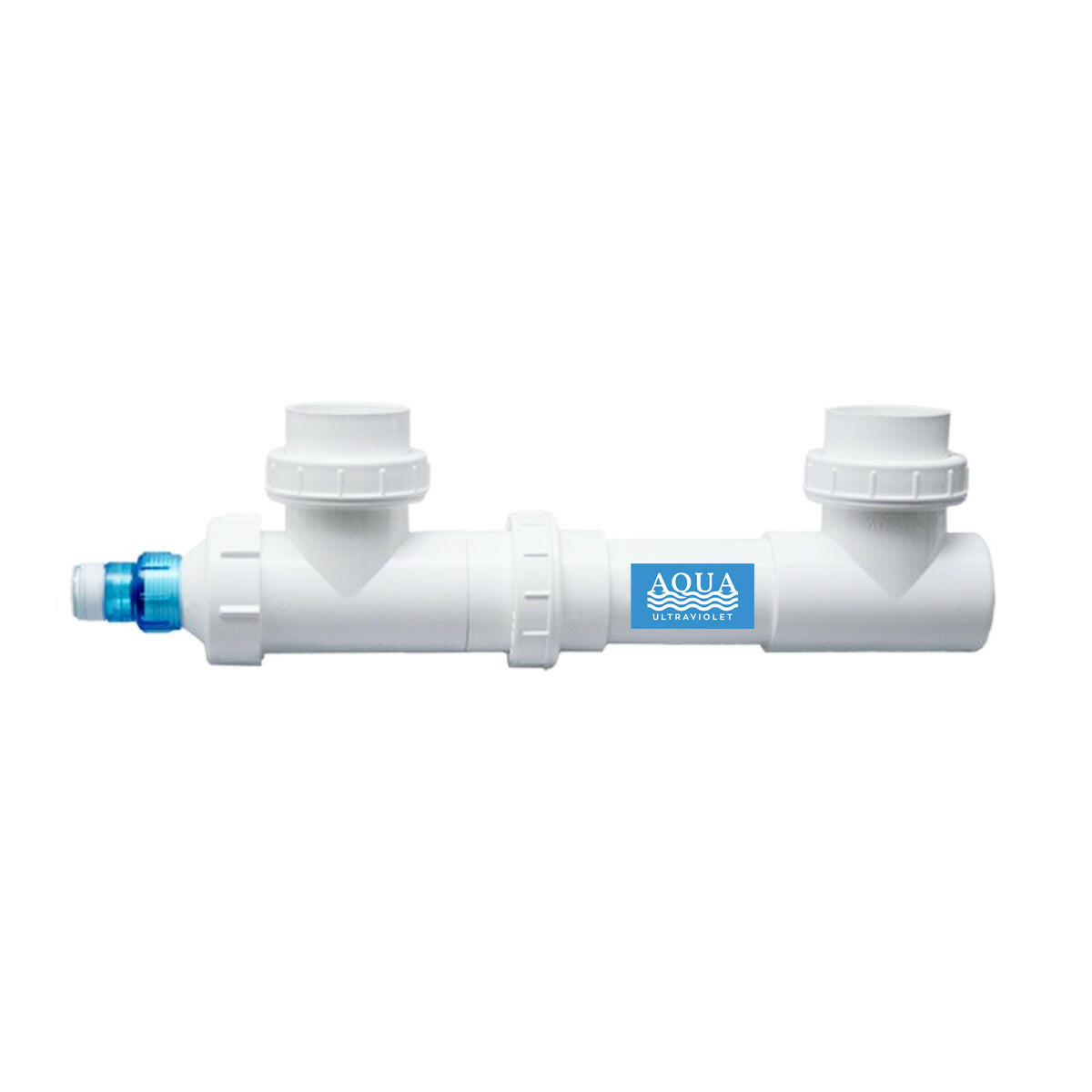

Aqua Ultraviolet – TWIST 40 Watt UV Sterilizer, 2" (White)

Aqua Ultraviolet – TWIST 40 Watt UV Sterilizer, 2" (White)

Overview

Mid-size UV-C sterilizer with a flexible plumbing layout. The TWIST 40W adds a rotatable union block so you can “twist” the inlet/outlet orientation to match your run—cutting elbows, head loss, and install time. 2" slip ports support high-flow pond and aquarium loops.

Key Features

• Rotating (TWIST) union block aligns ports to your plumbing in tight spaces

• Single 40W low-pressure UV-C lamp targets algae, bacteria, and protozoa

• 2" slip inlet/outlet for clean, high-flow PVC installs

• Clear end cap shows lamp-on status; service-friendly access

• Weather-resistant housing (non-submersible) for indoor or protected outdoor use

Sizing & Flow Guidance

• Sterilizer (freshwater): ~1,200–2,000 gal

• Sterilizer (saltwater): ~325 gal

• Clarifier (freshwater): up to ~6,000 gal (with 50–75% plant coverage)

• Target UV-dose flows (EOL):

  • ~2,900 GPH ≈ 30,000 µW·s/cm² (clarifying)

  • ~1,930 GPH ≈ 45,000 µW·s/cm²

  • ~1,450 GPH ≈ 60,000 µW·s/cm²

  • ~1,160 GPH ≈ 75,000 µW·s/cm²

  • ~967 GPH ≈ 90,000 µW·s/cm² (tighter pathogen control)

Specifications

• Model: TWIST 40 Watt, 2" Inlet/Outlet, White

• Lamp: (1) × 40W low-pressure UV-C

• Electrical: 120 V / 60 Hz

• Connections: 2" slip (in/out), rotatable union block

• Dimensions (unit): ≈38" × 4" × 2.5"

• Cord Length: ~15 ft

• Mounting: Wall/stand or supported inline (use appropriate brackets/anchors)

• Warranty: Limited lifetime on housing; 1-year on other components

What’s Included

• TWIST 40W UV body (White, 2" ports)

• (1) 40W UV lamp

• Transformer/power supply

• Union/slip set

• Quick start/installation guide

Installation Notes

1. Install after mechanical filtration on a pressurized return line.

2. Rotate (twist) the union block to align with your plumbing, solvent-weld, and allow full cure before pressurizing.

3. Add unions/valves to isolate the unit and dial in target flow.

4. Protect from weather; do not submerge.

5. Replace the lamp every 9–12 months for consistent UV dose; clean/inspect the quartz sleeve at each change.
