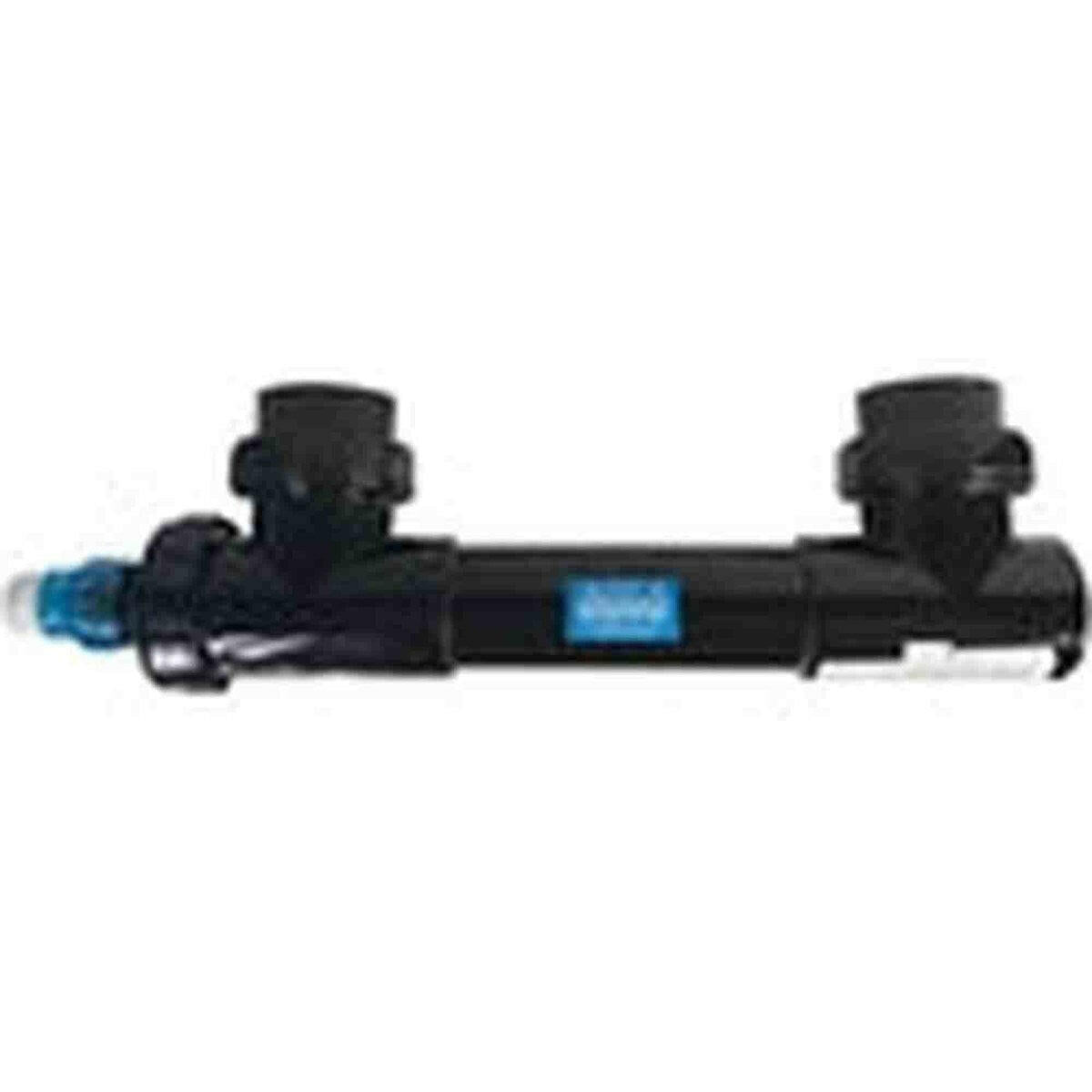

Aqua Ultraviolet – Classic Inline UV Sterilizer, 57 Watt, 3/4" Socket (Black)

Aqua Ultraviolet – Classic Inline UV Sterilizer, 57 Watt, 3/4" Socket (Black)

Overview

High-output inline UV-C sterilizer for aquariums and small ponds. The Classic 57W with 3/4" socket unions plumbs into rigid 3/4" PVC for a clean, leak-resistant install—ideal for medium–large displays, reef/freshwater polishing loops, and QT systems.

Key Features

• 3/4" socket (slip) unions for rigid-PVC plumbing

• Single 57W low-pressure UV-C lamp for algae/bacteria/protozoa control

• Clear end cap to confirm lamp-on status at a glance

• Weather-resistant (non-submersible) housing; compact, service-friendly layout

• Optional Wiper version available (not recommended for saltwater use)

Sizing & Flow Guidance

• Sterilizer (freshwater): ~1,800–3,500 gal

• Sterilizer (saltwater): ~500–700 gal

• Clarifier (freshwater): up to ~8,000 gal (with 50–75% plant coverage)

• Target UV-dose flows (EOL):

  • ~3,600 GPH ≈ 30,000 µW·s/cm² (clarifying)

  • ~2,400 GPH ≈ 45,000 µW·s/cm²

  • ~1,800 GPH ≈ 60,000 µW·s/cm²

  • ~1,440 GPH ≈ 75,000 µW·s/cm²

  • ~1,200 GPH ≈ 90,000 µW·s/cm² (tighter pathogen control)

Specifications

• Model: Classic Inline 57 Watt, 3/4" Socket, Black (No Wiper)

• Lamp: (1) × 57W low-pressure UV-C

• Electrical: 120V / 60Hz

• Connections: 3/4" slip (socket) unions, in/out

• Dimensions (unit): ~23" × 3-3/4" × 6"

• Cord Length: ~15 ft

• Mount: Supported inline or wall/stand (use suitable brackets/anchors)

• Warranty: Limited lifetime on housing; 1-year on other components

What’s Included

• Classic 57W inline UV body (Black, 3/4" socket ports)

• (1) 57W UV lamp

• Inline transformer/power supply

• 3/4" slip unions (model dependent)

• Quick start/installation guide

Installation Notes

1. Install after mechanical filtration on a pressure line; follow the flow arrow.

2. Solvent-weld 3/4" PVC into the sockets; allow full cure before pressurizing.

3. Use valves/unions to tune flow to your target dose and simplify service.

4. Keep power components dry/ventilated; do not submerge the unit.

5. Replace the lamp every 9–12 months of continuous use to maintain dose.
