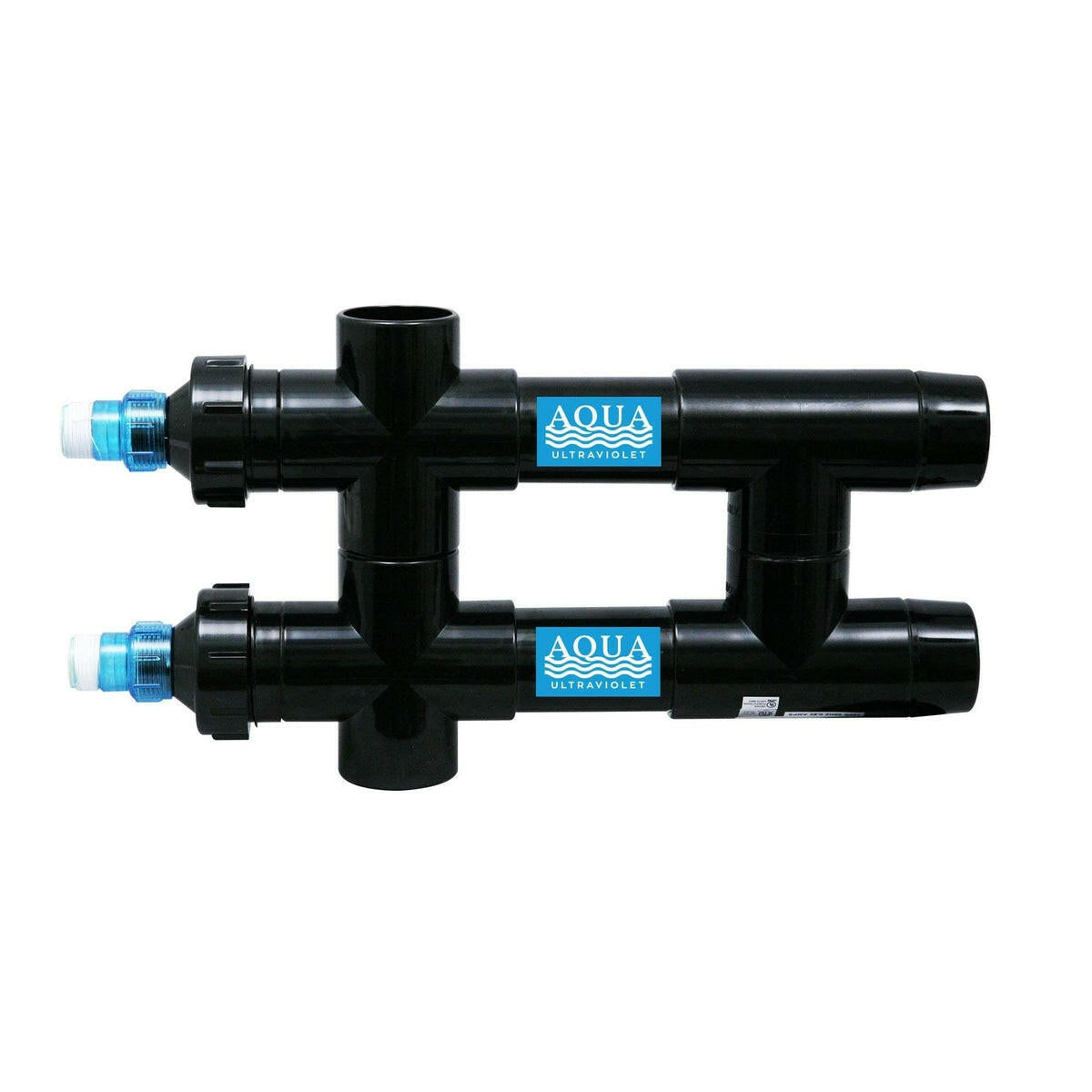

Aqua Ultraviolet – Classic Inline UV Sterilizer, 114 Watt, 2" Socket (Black)

Aqua Ultraviolet – Classic Inline UV Sterilizer, 114 Watt, 2" Socket (Black)

Overview

High-capacity inline UV-C sterilizer for serious ponds and aquarium life-support. The Classic 114W uses two 57-watt lamps and 2" socket ports to deliver strong water clarity and pathogen reduction while keeping service simple and fast.

Key Features

• Heavy-duty Classic housing with 2" socket (slip-union) connections for high-flow plumbing

• Dual-lamp (2 × 57W) design for robust UV dose and clear water

• Targets free-floating algae, bacteria, and protozoa without chemicals

• Weather-resistant, non-submersible body for indoor or protected outdoor installs

• Service-friendly layout; optional manual Wiper version available

Sizing & Flow Guidance

• Sterilizer (freshwater): ~2,200–4,400 gal

• Sterilizer (saltwater): ~700 gal

• Clarifier (freshwater): up to ~9,500 gal (with 50–75% plant coverage)

• Typical UV-dose flow targets (EOL):

  • ~3,900 GPH ≈ 30,000 µW·s/cm² (clarifying)

  • ~2,600 GPH ≈ 45,000 µW·s/cm²

  • ~1,950 GPH ≈ 60,000 µW·s/cm²

  • ~1,560 GPH ≈ 75,000 µW·s/cm²

  • ~1,300 GPH ≈ 90,000 µW·s/cm² (tighter pathogen control)

Specifications

• Model: Classic Inline 114 Watt, 2" Socket, Black (No Wiper)

• Lamps: (2) × 57W low-pressure UV-C

• Electrical: 120V / 60Hz, approx. ~0.85 A total draw

• Connections: 2" socket/slip unions (in/out)

• Dimensions (unit): ~20" × 3-3/4" × 16-1/2"

• Cord Length: ~15 ft

• Mounting: Wall/stand (use appropriate brackets/anchors)

• Warranty: Limited lifetime on housing; 1 year on other components

What’s Included

• Classic 114W UV body (Black, 2" socket ports)

• (2) 57W UV lamps

• Inline power supplies

• Union/fitting set (2" socket/slip)

• Quick start/installation guide

Installation Notes

1. Install after mechanical filtration on a pressure line; avoid gravity-feed.

2. Use unions/valves to isolate the unit and dial in target flow.

3. Protect from weather; do not submerge.

4. Replace lamps every 9–12 months of continuous use to maintain dose.
