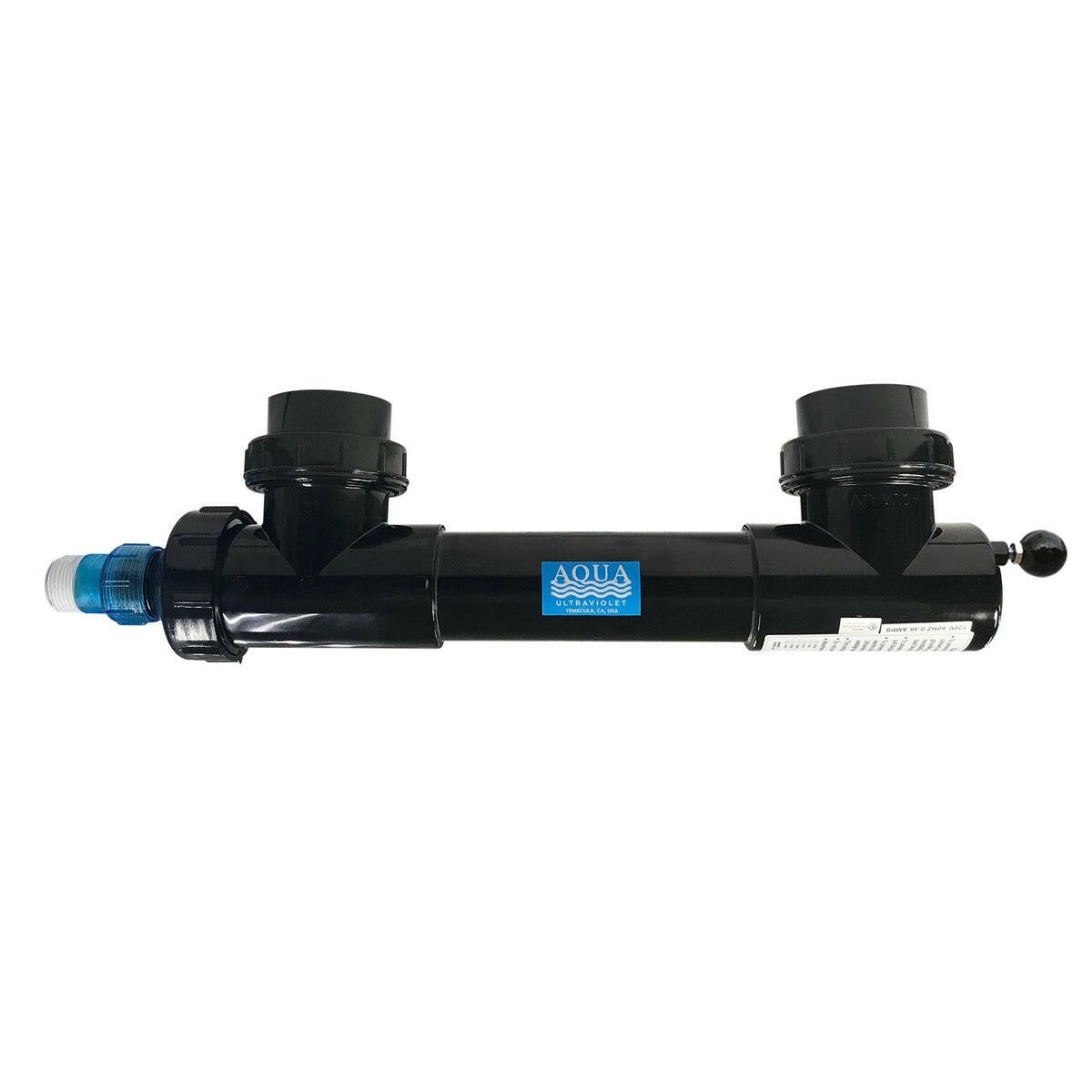

Aqua Ultraviolet – 25 Watt Classic UV Sterilizer, 3/4" (Black) with Wiper

Aqua Ultraviolet – 25 Watt Classic UV Sterilizer, 3/4" (Black) with Wiper

Overview

Reliable, compact UV-C sterilizer for ponds and aquariums. This Classic 25W model with 3/4" ports adds a manual wiper to help keep the quartz sleeve clear between services—great for polishing loops, QT systems, and modest displays.

Key Features

• Classic housing with 3/4" inlet/outlet for easy inline plumbing

• Single low-pressure 25W UV-C lamp for algae/bacteria/protozoa control

• Integrated manual wiper helps maintain sleeve clarity and consistent UV output

• Weather-resistant (non-submersible) body for indoor or protected outdoor installs

• Clear end cap shows lamp-on status; quick access for lamp/sleeve changes

Note: Wipers are not recommended for saltwater use; using a wiper on saltwater can void the wiper warranty. Many marine installs choose the non-wiper variant and clean the sleeve during lamp changes.

Sizing & Flow Guidance

• Sterilizer (freshwater): ~500–1,200 gal

• Sterilizer (saltwater): ~150 gal

• Clarifier (freshwater): up to ~4,000 gal (with 50–75% plant coverage)

• Target UV-dose flows (EOL):

  • ~1,200 GPH ≈ 30,000 µW·s/cm²

  • ~800 GPH ≈ 45,000 µW·s/cm²

  • ~600 GPH ≈ 60,000 µW·s/cm²

  • ~480 GPH ≈ 75,000 µW·s/cm²

  • ~400 GPH ≈ 90,000 µW·s/cm² (tighter pathogen control)

Specifications

• Model: Classic 25 Watt, 3/4" Inlet/Outlet, Black, with Wiper

• Lamp: (1) × 25W low-pressure UV-C

• Electrical: 120 V / 60 Hz; ~0.48 A

• Connections: 3/4" (barb or slip style per kit)

• Dimensions (unit): 20" × 3-3/4" × 6"

• Dimensions with Wiper: 22-3/4" × 3-3/4" × 6"

• Wiper clearance: 12"

• Cord Length: ~15 ft

• Mounting: Wall/stand (use suitable brackets/anchors)

• Warranty: Limited lifetime on housing; 1-year on other components (wiper excluded from saltwater coverage)

What’s Included

• Classic 25W UV body (Black, 3/4" ports) with manual wiper

• (1) 25W UV lamp

• Inline power supply

• Union/fitting set (3/4")

• Quick start/installation guide

Installation Notes

1. Plumb after mechanical filtration on a pressure line; avoid gravity-feed.

2. Add unions/valves for service and to set flow.

3. Operate the wiper with the lamp off; relieve pressure before wiping.

4. Protect from weather; do not submerge.

5. Replace the lamp every ~9–12 months of continuous use to maintain dose.
