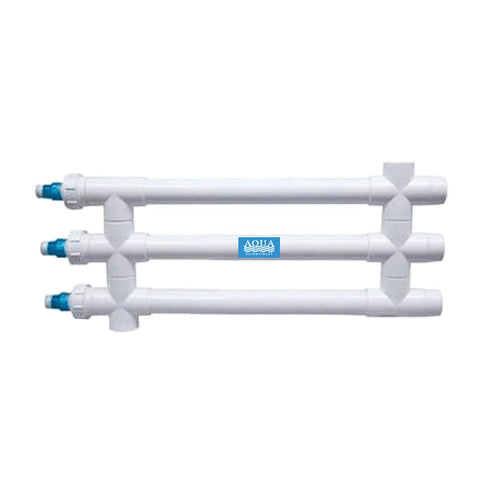

Aqua Ultraviolet – Classic 120 Watt UV Sterilizer, 2" (White)

Overview

High-output UV-C sterilizer for large ponds and serious aquarium life-support. The Classic 120W with 2" slip ports uses a three-lamp array to deliver strong water clarity and pathogen reduction in a service-friendly housing.

Key Features

• Heavy-duty Classic body with 2" slip inlet/outlet for high-flow plumbing

• Tri-lamp design (3 × 40W) for robust UV dose and fast water polishing

• Clears green water; reduces algae, bacteria, and protozoa load

• Weather-resistant (non-submersible) for indoor or protected outdoor installs

• Service-friendly: quick-release tee, EZ-twist cap, clear quartz cap (lamp-on view)

Sizing & Flow Guidance

• Sterilizer (freshwater): ~4,400–6,000 gal

• Sterilizer (saltwater): ~900 gal

• Clarifier (freshwater): up to ~12,000 gal (with 50–75% plant coverage)

• Target UV-dose flows (EOL): up to ~4,080 GPH at ~30,000 µW·s/cm² (reduce flow for higher doses/pathogen control)

Specifications

• Model: Classic 120 Watt, 2" Inlet/Outlet, White (No Wiper)

• Lamps: (3) × 40W low-pressure UV-C

• Electrical: 120V / 60Hz, approx. 1.33 A total draw

• Connections: 2" slip (in/out)

• Dimensions (2" unit): 36-7/8" × 3-3/4" × 21-3/8"

• Cord Length: ~15 ft

• Mounting: Wall/stand (use appropriate brackets/anchors)

• Warranty: Limited lifetime on housing; 1-year on other components

What’s Included

• Classic 120W UV body (White, 2" ports)

• (3) 40W UV lamps

• Remote transformer/power supply

• Union/fitting set (2" slip)

• Quick start/installation guide

Installation Notes

1. Install after mechanical filtration on a pressure line; avoid gravity-feed.

2. Use unions/valves to isolate the unit and dial in target flow.

3. Protect from weather; do not submerge.

4. Replace lamps every 9–12 months of continuous use to maintain dose.
